kirti g.i. pipe fittings - isi marked as per is:1879:2010

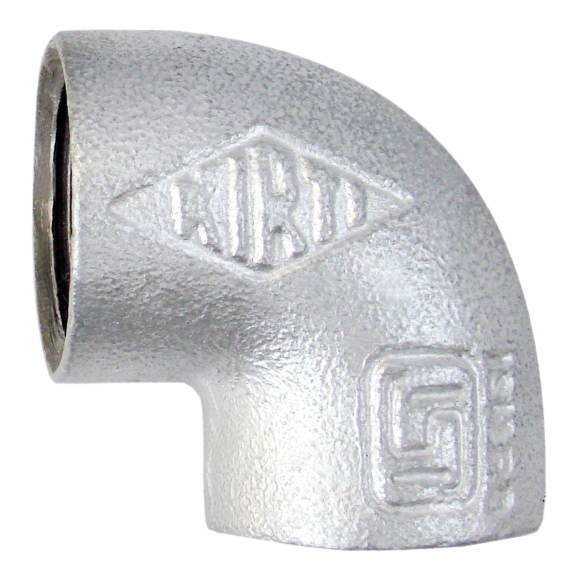

Elbow A1

Inches	1/4	3/8	1/2	3/4	1	1-1/4	1-1/2	2	2-1/2	3	4	5	6
MM	8	10	15	20	25	32	40	50	65	80	100	125	150
a	21	25	28	33	38	45	50	58	69	78	96	115	131

Material: Black heart malleable cast iron as per IS:14329-1995 Grade BM300 Compression: Up to 2" Compression is 5% (Min.)/ 2½" to 6" Compression is 3% (Min.) Galvanization: Hot dip galvanized as per IS:4759-1996. Minimum Zinc coating 610gm/m² Threads: As per IS:554-1999 both parallel & taper. Dimensions: Malleable Cast Iron Pipe Fittings as per IS:1879-2010 Part 1 to 3. Pressure: 21kg/cm² - 300Lbs/inch² (Hydraulic).

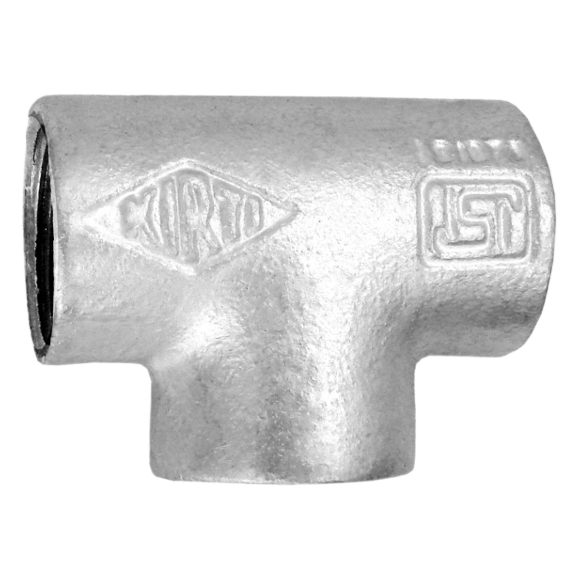

Tee B1

Inches	1/4	3/8	1/2	3/4	1	1-1/4	1-1/2	2	2-1/2	3	4	5	6
MM	8	10	15	20	25	32	40	50	65	80	100	125	150
a	21	25	28	33	38	45	50	58	69	78	96	115	131

Material: Black heart malleable cast iron as per IS:14329-1995 Grade BM300 Compression: Up to 2" Compression is 5% (Min.)/ 2½" to 6" Compression is 3% (Min.) Galvanization: Hot dip galvanized as per IS:4759-1996. Minimum Zinc coating 610gm/m² Threads: As per IS:554-1999 both parallel & taper. Dimensions: Malleable Cast Iron Pipe Fittings as per IS:1879-2010 Part 1 to 3. Pressure: 21kg/cm² - 300Lbs/inch² (Hydraulic).

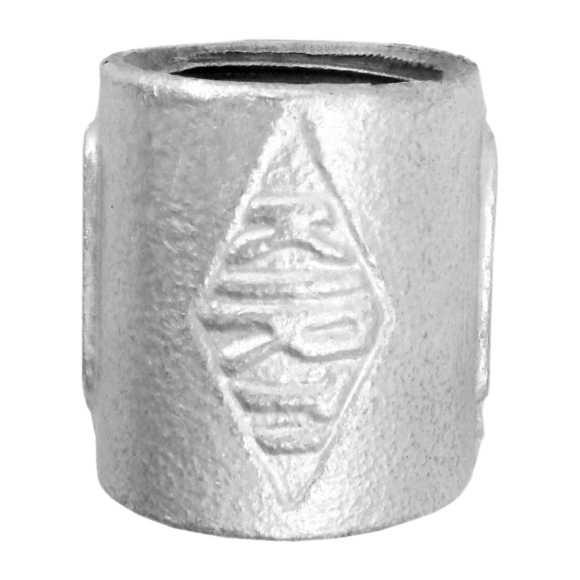

Socket M2

Inches	1/4	3/8	1/2	3/4	1	1-1/4	1-1/2	2	2-1/2	3	4	5	6
MM	8	10	15	20	25	32	40	50	65	80	100	125	150
a	27	30	36	39	45	50	55	65	71	78	94	109	120

Material: Black heart malleable cast iron as per IS:14329-1995 Grade BM300 Compression: Up to 2" Compression is 5% (Min.)/ 2½" to 6" Compression is 3% (Min.) Galvanization: Hot dip galvanized as per IS:4759-1996. Minimum Zinc coating 610gm/m² Threads: As per IS:554-1999 both parallel & taper. Dimensions: Malleable Cast Iron Pipe Fittings as per IS:1879-2010 Part 1 to 3. Pressure: 21kg/cm² - 300Lbs/inch² (Hydraulic).

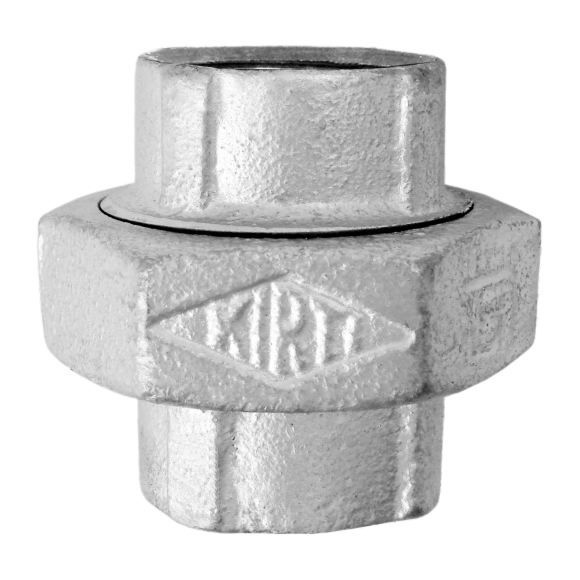

Union U1

Inches	1/4	3/8	1/2	3/4	1	1-1/4	1-1/2	2	2-1/2	3	4	5	6
MM	8	10	15	20	25	32	40	50	65	80	100	125	150
a	42	45	48	52	58	65	70	78	85	95	110	135	150

Material: Black heart malleable cast iron as per IS:14329-1995 Grade BM300 Compression: Up to 2" Compression is 5% (Min.)/ 2½" to 6" Compression is 3% (Min.) Galvanization: Hot dip galvanized as per IS:4759-1996. Minimum Zinc coating 610gm/m² Threads: As per IS:554-1999 both parallel & taper. Dimensions: Malleable Cast Iron Pipe Fittings as per IS:1879-2010 Part 1 to 3. Pressure: 21kg/cm² - 300Lbs/inch² (Hydraulic).

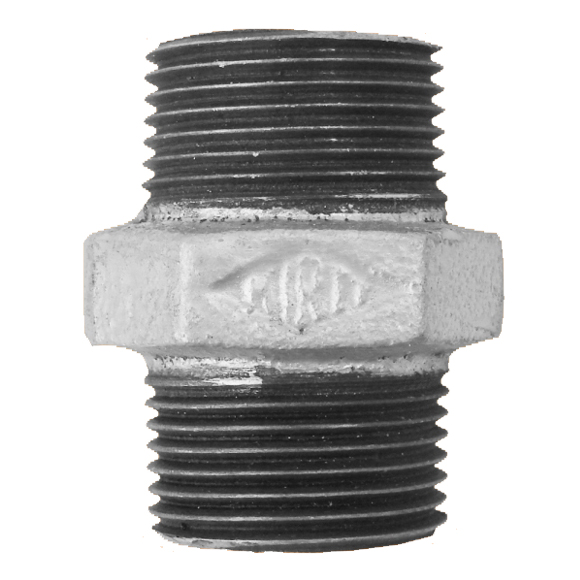

Nipple N8

Inches	1/4	3/8	1/2	3/4	1	1-1/4	1-1/2	2	2-1/2	3	4	5	6
MM	8	10	15	20	25	32	40	50	65	80	100	125	150
a	36	38	44	47	53	57	59	68	75	83	95	--	--

Material: Black heart malleable cast iron as per IS:14329-1995 Grade BM300 Compression: Up to 2" Compression is 5% (Min.)/ 2½" to 6" Compression is 3% (Min.) Galvanization: Hot dip galvanized as per IS:4759-1996. Minimum Zinc coating 610gm/m² Threads: As per IS:554-1999 both parallel & taper. Dimensions: Malleable Cast Iron Pipe Fittings as per IS:1879-2010 Part 1 to 3. Pressure: 21kg/cm² - 300Lbs/inch² (Hydraulic).

Reducing Elbow A1

Material: Black heart malleable cast iron as per IS:14329-1995 Grade BM300 Compression: Up to 2" Compression is 5% (Min.)/ 2½" to 6" Compression is 3% (Min.) Galvanization: Hot dip galvanized as per IS:4759-1996. Minimum Zinc coating 610gm/m² Threads: As per IS:554-1999 both parallel & taper. Dimensions: Malleable Cast Iron Pipe Fittings as per IS:1879-2010 Part 1 to 3. Pressure: 21kg/cm² - 300Lbs/inch² (Hydraulic).

Reducing Tee B1

Material: Black heart malleable cast iron as per IS:14329-1995 Grade BM300 Compression: Up to 2" Compression is 5% (Min.)/ 2½" to 6" Compression is 3% (Min.) Galvanization: Hot dip galvanized as per IS:4759-1996. Minimum Zinc coating 610gm/m² Threads: As per IS:554-1999 both parallel & taper. Dimensions: Malleable Cast Iron Pipe Fittings as per IS:1879-2010 Part 1 to 3. Pressure: 21kg/cm² - 300Lbs/inch² (Hydraulic).

Reducing Socket M2

Material: Black heart malleable cast iron as per IS:14329-1995 Grade BM300 Compression: Up to 2" Compression is 5% (Min.)/ 2½" to 6" Compression is 3% (Min.) Galvanization: Hot dip galvanized as per IS:4759-1996. Minimum Zinc coating 610gm/m² Threads: As per IS:554-1999 both parallel & taper. Dimensions: Malleable Cast Iron Pipe Fittings as per IS:1879-2010 Part 1 to 3. Pressure: 21kg/cm² - 300Lbs/inch² (Hydraulic).

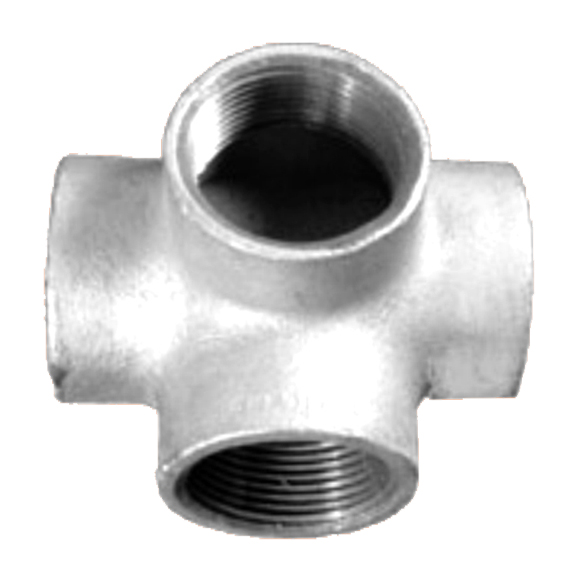

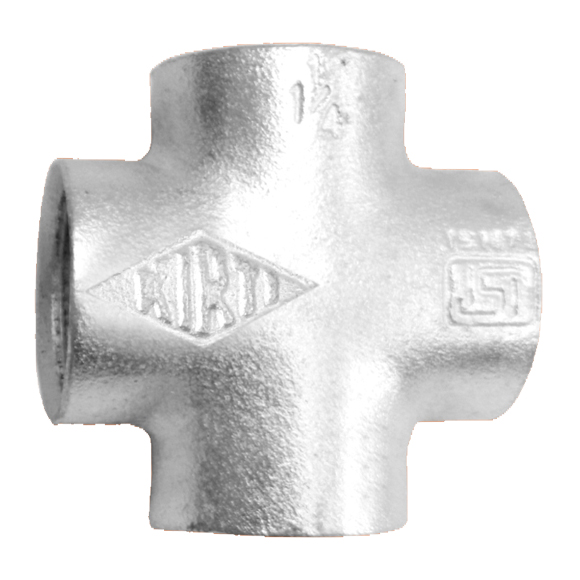

Cross C1

Inches	1/2	3/4	1	1-1/4	1-1/2	2	2-1/2	3	4	5	6
MM	15	20	25	32	40	50	65	80	100	125	150
a	28	33	38	45	50	58	69	78	96	115	131

Material: Black heart malleable cast iron as per IS:14329-1995 Grade BM300 Compression: Up to 2" Compression is 5% (Min.)/ 2½" to 6" Compression is 3% (Min.) Galvanization: Hot dip galvanized as per IS:4759-1996. Minimum Zinc coating 610gm/m² Threads: As per IS:554-1999 both parallel & taper. Dimensions: Malleable Cast Iron Pipe Fittings as per IS:1879-2010 Part 1 to 3. Pressure: 21kg/cm² - 300Lbs/inch² (Hydraulic).

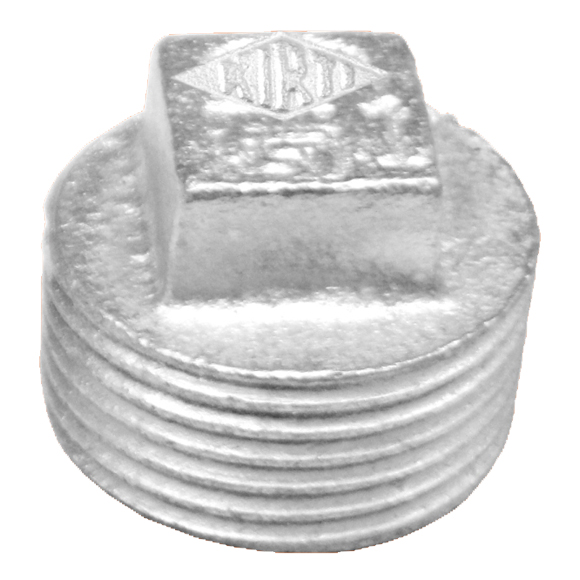

Plug T8

Inches	1/2	3/4	1	1-1/4	1-1/2	2	2-1/2	3	4	5	6
MM	15	20	25	32	40	50	65	80	100	125	150
a	18	20	23	29	30	36	39	44	58	68	70

Material: Black heart malleable cast iron as per IS:14329-1995 Grade BM300 Compression: Up to 2" Compression is 5% (Min.)/ 2½" to 6" Compression is 3% (Min.) Galvanization: Hot dip galvanized as per IS:4759-1996. Minimum Zinc coating 610gm/m² Threads: As per IS:554-1999 both parallel & taper. Dimensions: Malleable Cast Iron Pipe Fittings as per IS:1879-2010 Part 1 to 3. Pressure: 21kg/cm² - 300Lbs/inch² (Hydraulic).

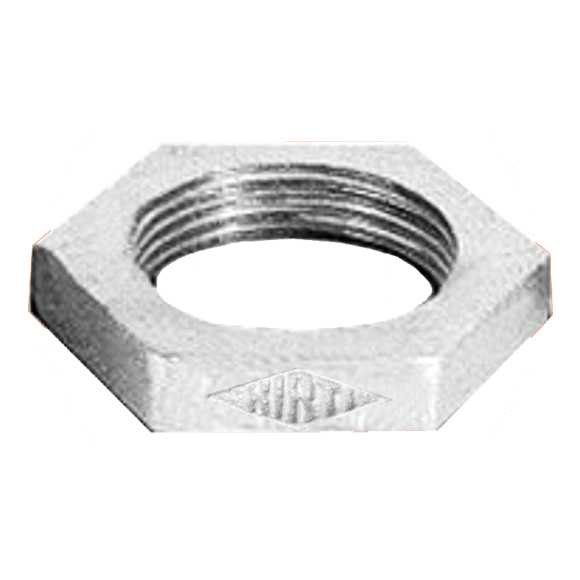

Back Nut (Checknut) P4

Inches	1/2	3/4	1	1-1/4	1-1/2	2	2-1/2	3	4	5	6
MM	15	20	25	32	40	50	65	80	100	125	150
a	8	9	10	11	12	13	16	19	21	--	--

Material: Black heart malleable cast iron as per IS:14329-1995 Grade BM300 Compression: Up to 2" Compression is 5% (Min.)/ 2½" to 6" Compression is 3% (Min.) Galvanization: Hot dip galvanized as per IS:4759-1996. Minimum Zinc coating 610gm/m² Threads: As per IS:554-1999 both parallel & taper. Dimensions: Malleable Cast Iron Pipe Fittings as per IS:1879-2010 Part 1 to 3. Pressure: 21kg/cm² - 300Lbs/inch² (Hydraulic).

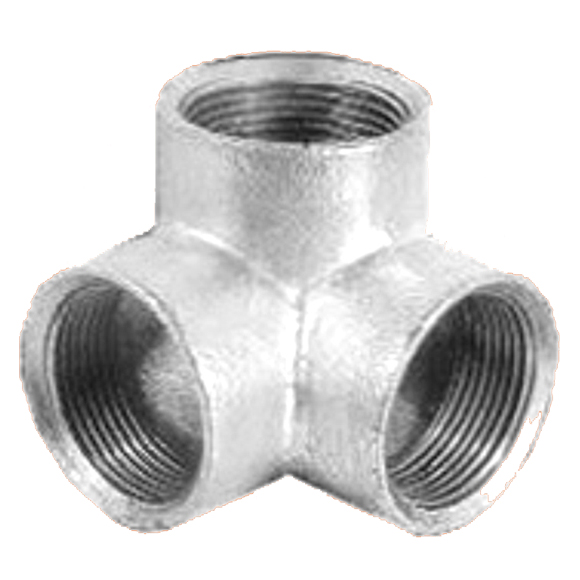

Side Outlet (3-Way Elbow) Za1

Inches	1/2	3/4	1	1-1/4	1-1/2	2	2-1/2	3	4	5	6
MM	15	20	25	32	40	50	65	80	100	125	150
a	28	33	38	45	50	58	69	78	96	115	131

Material: Black heart malleable cast iron as per IS:14329-1995 Grade BM300 Compression: Up to 2" Compression is 5% (Min.)/ 2½" to 6" Compression is 3% (Min.) Galvanization: Hot dip galvanized as per IS:4759-1996. Minimum Zinc coating 610gm/m² Threads: As per IS:554-1999 both parallel & taper. Dimensions: Malleable Cast Iron Pipe Fittings as per IS:1879-2010 Part 1 to 3. Pressure: 21kg/cm² - 300Lbs/inch² (Hydraulic).

Side Outlet Tee (4-Way Tee) Za2

Inches	1/2	3/4	1	1-1/4	1-1/2	2	2-1/2	3	4	5	6
MM	15	20	25	32	40	50	65	80	100	125	150
a	28	33	38	45	50	58	69	78	96	115	131

Material: Black heart malleable cast iron as per IS:14329-1995 Grade BM300 Compression: Up to 2" Compression is 5% (Min.)/ 2½" to 6" Compression is 3% (Min.) Galvanization: Hot dip galvanized as per IS:4759-1996. Minimum Zinc coating 610gm/m² Threads: As per IS:554-1999 both parallel & taper. Dimensions: Malleable Cast Iron Pipe Fittings as per IS:1879-2010 Part 1 to 3. Pressure: 21kg/cm² - 300Lbs/inch² (Hydraulic).

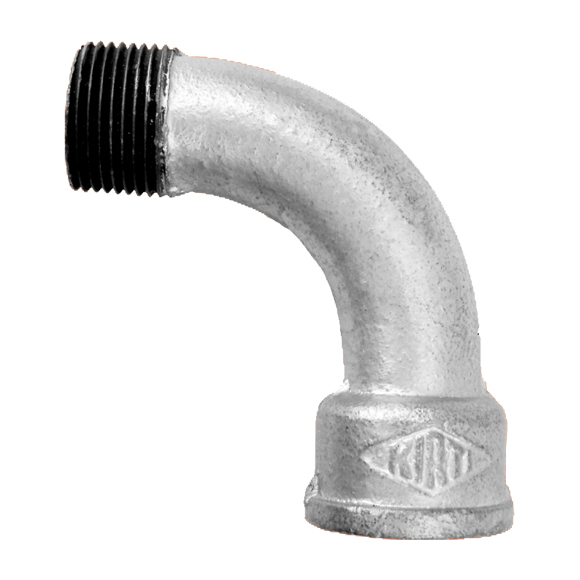

Long Sweep Bend (Short Bend) Male/Female G4

Inches	1/2	3/4	1	1-1/4	1-1/2	2	2-1/2	3	4
MM	15	20	25	32	40	50	65	80	100
a	55	69	85	105	116	140	176	205	260
b	48	60	75	95	105	130	165	190	245

Material: Black heart malleable cast iron as per IS:14329-1995 Grade BM300 Compression: Up to 2" Compression is 5% (Min.)/ 2½" to 6" Compression is 3% (Min.) Galvanization: Hot dip galvanized as per IS:4759-1996. Minimum Zinc coating 610gm/m² Threads: As per IS:554-1999 both parallel & taper. Dimensions: Malleable Cast Iron Pipe Fittings as per IS:1879-2010 Part 1 to 3. Pressure: 21kg/cm² - 300Lbs/inch² (Hydraulic).

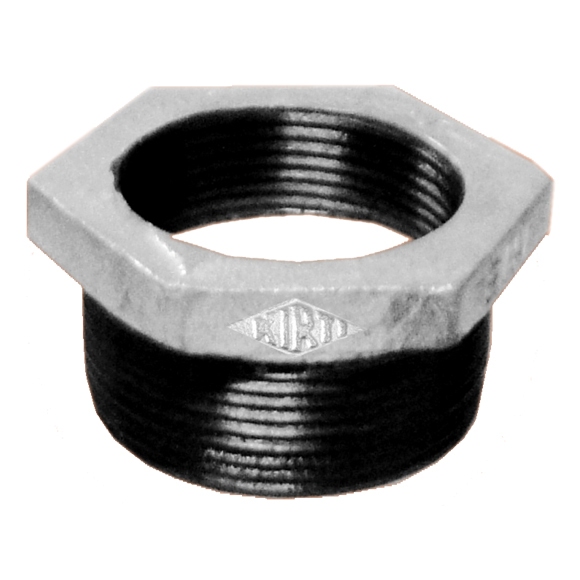

Reducing Bushing N4

Inches	¾ x ½	1 x ½	1 x ¾	1¼ x ½	1¼ x ¾	1¼ x 1	1½ x ½	1½ x ¾	1½ x 1	1½ x 1¼	--
a MM	26	29	29	31	31	31	31	31	31	31	--
Inches	2 x ½	2 x ¾	2 x 1	2 x 1¼	2 x 1½	2½ x 1½	2½ x 2	3 x 1½	3 x 2	4 x 2½	4 x 3
a MM	35	35	35	35	35	40	40	44	44	51	51

Material: Black heart malleable cast iron as per IS:14329-1995 Grade BM300 Compression: Up to 2" Compression is 5% (Min.)/ 2½" to 6" Compression is 3% (Min.) Galvanization: Hot dip galvanized as per IS:4759-1996. Minimum Zinc coating 610gm/m² Threads: As per IS:554-1999 both parallel & taper. Dimensions: Malleable Cast Iron Pipe Fittings as per IS:1879-2010 Part 1 to 3. Pressure: 21kg/cm² - 300Lbs/inch² (Hydraulic).

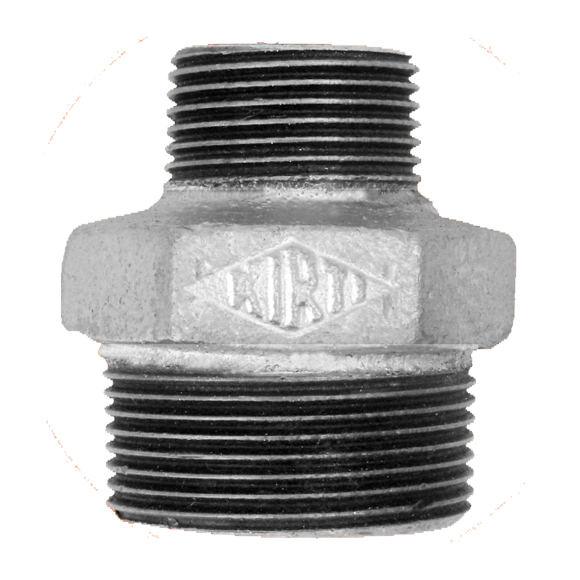

Reducing Nipple N8

Inches	¾ x ½	1 x ½	1 x ¾	1¼ x ½	1¼ x ¾	1¼ x 1	1½ x ½	1½ x ¾	1½ x 1	1½ x 1¼
a MM	47	53	53	57	57	57	59	59	59	59
Inches	2 x ½	2 x ¾	2 x 1	2 x 1¼	2 x 1½	2½ x 1½	2½ x 2	3 x 1½	3 x 2	--
a MM	68	68	68	68	68	75	75	83	83	--

Material: Black heart malleable cast iron as per IS:14329-1995 Grade BM300 Compression: Up to 2" Compression is 5% (Min.)/ 2½" to 6" Compression is 3% (Min.) Galvanization: Hot dip galvanized as per IS:4759-1996. Minimum Zinc coating 610gm/m² Threads: As per IS:554-1999 both parallel & taper. Dimensions: Malleable Cast Iron Pipe Fittings as per IS:1879-2010 Part 1 to 3. Pressure: 21kg/cm² - 300Lbs/inch² (Hydraulic).

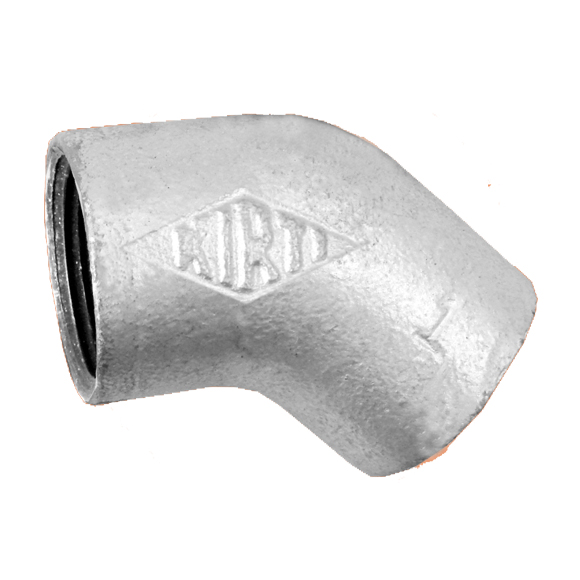

Elbow 45° (A1/45°)

Inches	1/2	3/4	1	1-1/4	1-1/2	2	2-1/2	3	4	5	6
a MM	22	25	28	33	36	43	52	58	66	77.5	88

Material: Black heart malleable cast iron as per IS:14329-1995 Grade BM300 Compression: Up to 2" Compression is 5% (Min.)/ 2½" to 6" Compression is 3% (Min.) Galvanization: Hot dip galvanized as per IS:4759-1996. Minimum Zinc coating 610gm/m² Threads: As per IS:554-1999 both parallel & taper. Dimensions: Malleable Cast Iron Pipe Fittings as per IS:1879-2010 Part 1 to 3. Pressure: 21kg/cm² - 300Lbs/inch² (Hydraulic).

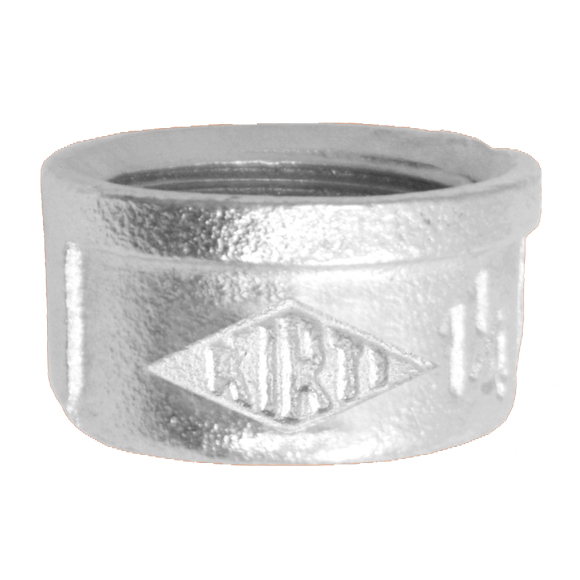

Round Cap T2

Inches	1/2	3/4	1	1-1/4	1-1/2	2	2-1/2	3	4	5	6
MM	15	20	25	32	40	50	65	80	100	125	150
a	19	22	24	27	27	32	35	38	45	--	51

Material: Black heart malleable cast iron as per IS:14329-1995 Grade BM300 Compression: Up to 2" Compression is 5% (Min.)/ 2½" to 6" Compression is 3% (Min.) Galvanization: Hot dip galvanized as per IS:4759-1996. Minimum Zinc coating 610gm/m² Threads: As per IS:554-1999 both parallel & taper. Dimensions: Malleable Cast Iron Pipe Fittings as per IS:1879-2010 Part 1 to 3. Pressure: 21kg/cm² - 300Lbs/inch² (Hydraulic).
