gun metal gate valve, is:778 marked, class-1

Gun Metal Gate Valves

Gun Metal Gate Valves

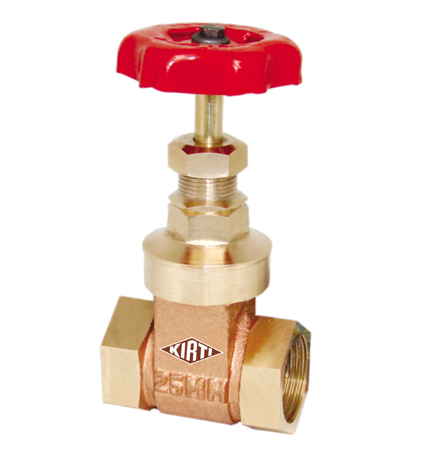

Gun Metal Gate Valve IS:778 Class-1

Gun Metal Gate Valve ISI Marked

Size 15mm to 100mm

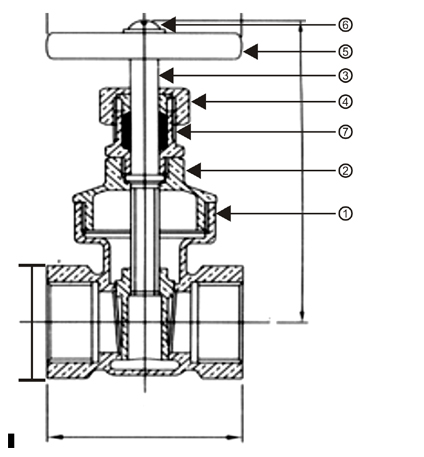

Materials

Part No.	Name of Part	Material	Specification
1	Body & Wedge	Gun Metal	IS:318 Ltb2
2	Bonnet, Stuffing Box & Gland	Gun Metal/Brass	IS:318 Ltb2
3	Stem	Brass	IS:1264 Gr DCB2
4	Gland Nut	Gun Metal/Forged Brass	IS:318 Ltb2/IS:6912 FLB
5	Handwheel	Cast Iron/M.S.Iron	IS:210 Gr FG-200
6	Screw, Bolt & Washer Plate	Mild Steel	-
7	Gland Packing	Asbestos	IS-4687

Specifications

Gun Metal Gate Valves ISI Marked to IS:778/1984 Class-1
Screwed in Bonnet
Non Rising Stem
Screwed Female Ends to BSP
Hydraulic Test Pressure: Body 1.5Mpa, Seat: & Back Seat 1.0Mpa
Suitable for Water & Oil

Features

High Quality Lubricated Gland Packing
Provision of re-packing under pressure
Strictly confirming to IS:778 Class-1
Excellent Performance
Available with Open Shut Indicator
