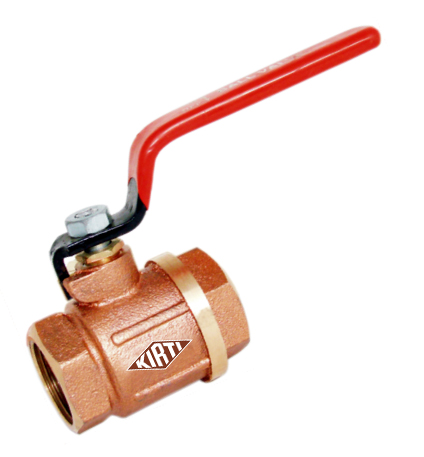

Gun Metal Ball Valves
Size 15mm to 100mm

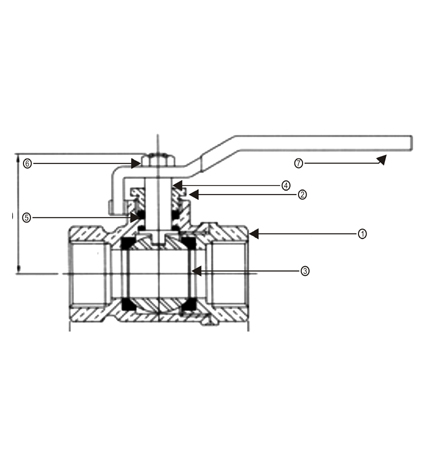

Materials
| Part No. |
Name of Part |
Material |
Specification |
1
|
Body & Bonnet |
Gun Metal |
IS:318 Ltb2 |
| 2 |
Gland Nut |
Brass |
IS:1264 DCB2 |
| 3 |
Ball |
S.S./Brass |
AISI:304/IS:1264 DCB2 |
| 4 |
Stem |
S.S./Brass |
AISI:304/IS:1264 DCB2 |
| 5 |
Disc & Packing |
Teflon |
- |
| 6 |
Nut |
Mild Steel |
- |
| 7 |
Handle |
Mild Steel |
- |
Specifications
- Screwed Female Ends to BSP, Full Bore
- Hydraulic Test Pressure: Body & Seat at 1.5Mpa
- Suitable for Water & Oil
Features
- High Quality Lubricated Gland Packing
- Provision of re-packing under pressure
- Excellent Performance
- Available with Open Shut Indicator
