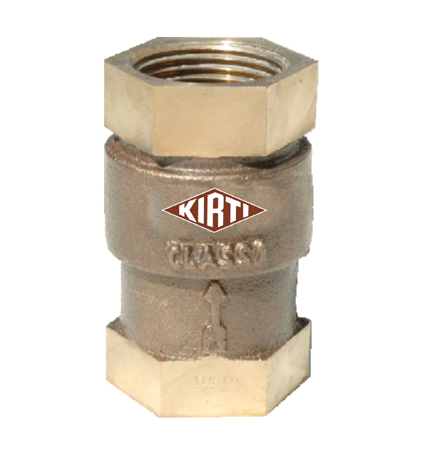

Gun Metal Vertical Check Valve IS:778 Class-1
Size 15mm to 100mm

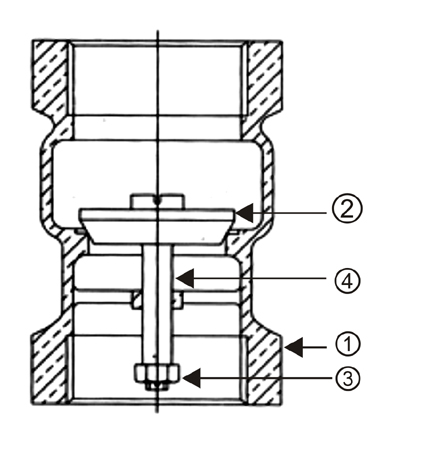

Materials
| Part No. |
Name of Part |
Material |
Specification |
1
|
Body |
Gun Metal |
IS:318 Ltb2 |
| 2 |
Seat |
Gun Metal |
IS:318 Ltb2 |
| 3 |
Nut |
Brass |
IS:1264 Gr DCB2 |
| 4 |
Spring |
Phosphor Bronze |
- |
Specifications
- Gun Metal Vertical Check Valves ISI Marked to IS:778/1984 Class-1
- Integral Seat
- Screwed Female Ends to BSP
- Hydraulic Test Pressure: Body 1.5Mpa, Seat: 1.0Mpa
- Suitable for Water & Oil
Features
- Made from 100% Lab Tested Material
- Excellent Performance
- Permit flow in one direction and closes automatically if the flow reverses
