Product Image

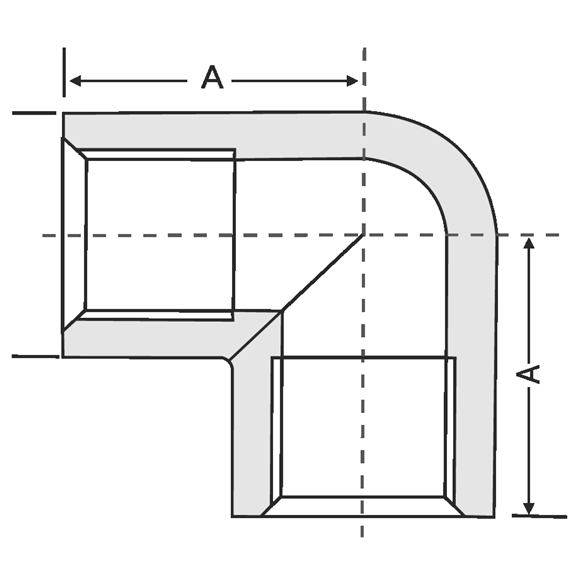

Elbow

1000 LBS. 90° Female, Equal

Nominal Size (mm) 15 20 25 32 40 50 65 80
A (min.)
 32 35 43 51 52 54 76 89
Material: As per IS:1387:1993 Dimensions: As per IS:1239:2011 (Part-2)/BSEN 10241-2000 Threads: BSP/BSPT/NPT (As per customer's requirement) Hydrostatic Pressure: Min. required 5Mpa, Internally Tested at 1000lbs Galvanization: As per IS:4739 (Min 610gm/cm² Application: Water, Air, Steam, Gas, Oil

Product Image

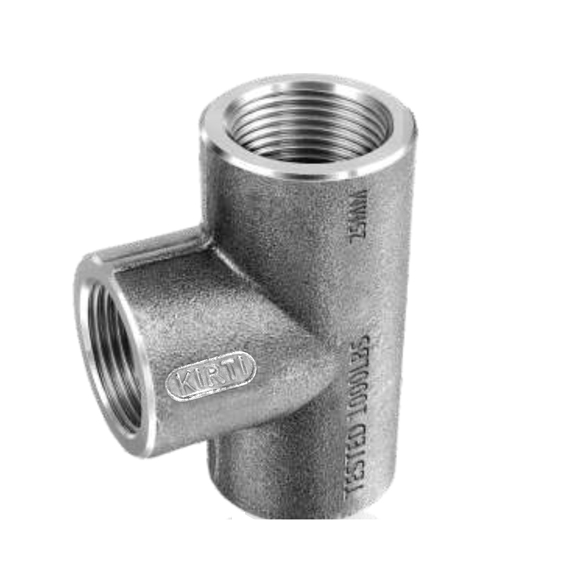

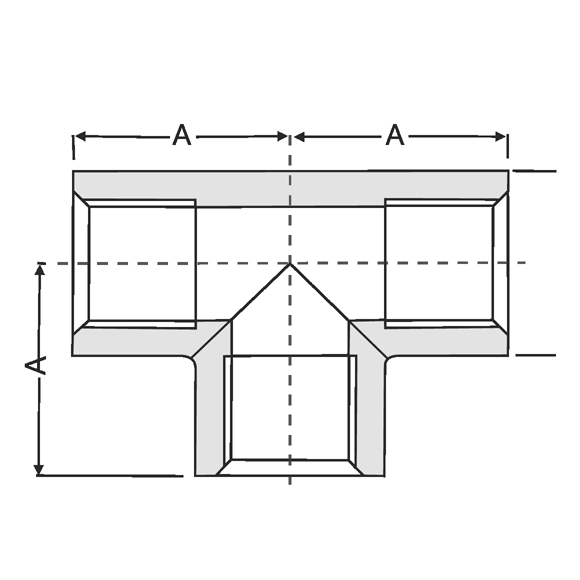

Tee

1000 LBS. 90° Female, Equal

Nominal Size (mm) 15 20 25 32 40 50 65 80
A (min.)
 32 35 43 51 52 54 76 89
Material: As per IS:1387:1993 Dimensions: As per IS:1239:2011 (Part-2)/BSEN 10241-2000 Threads: BSP/BSPT/NPT (As per customer's requirement) Hydrostatic Pressure: Min. required 5Mpa, Internally Tested at 1000lbs Galvanization: As per IS:4739 (Min 610gm/cm² Application: Water, Air, Steam, Gas, Oil

Product Image

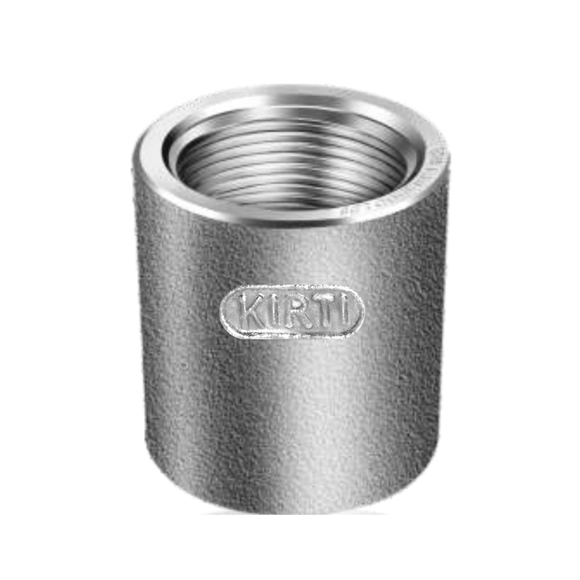

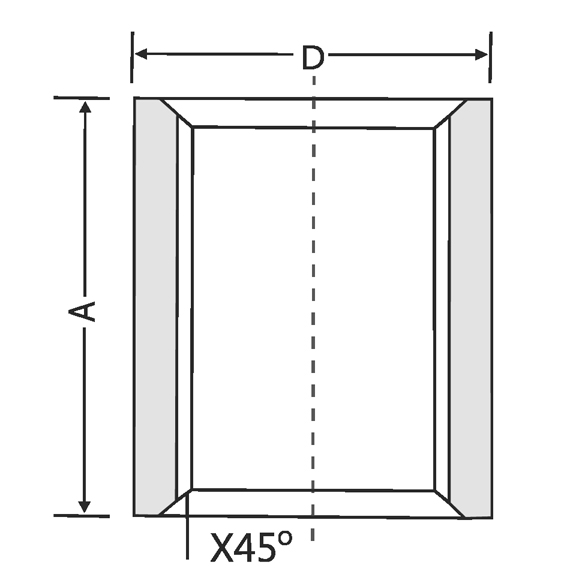

Socket

1000 LBS. 180° Female, Equal

Nominal Size (mm) 15 20 25 32 40 50 65 80
A (min.)
 37 39 46 51 51 60 69 75
D 27 32.5 39.5 49 56 68 84 98
Material: As per IS:1387:1993 Dimensions: As per IS:1239:2011 (Part-2)/BSEN 10241-2000 Threads: BSP/BSPT/NPT (As per customer's requirement) Hydrostatic Pressure: Min. required 5Mpa, Internally Tested at 1000lbs Galvanization: As per IS:4739 (Min 610gm/cm² Application: Water, Air, Steam, Gas, Oil

Product Image

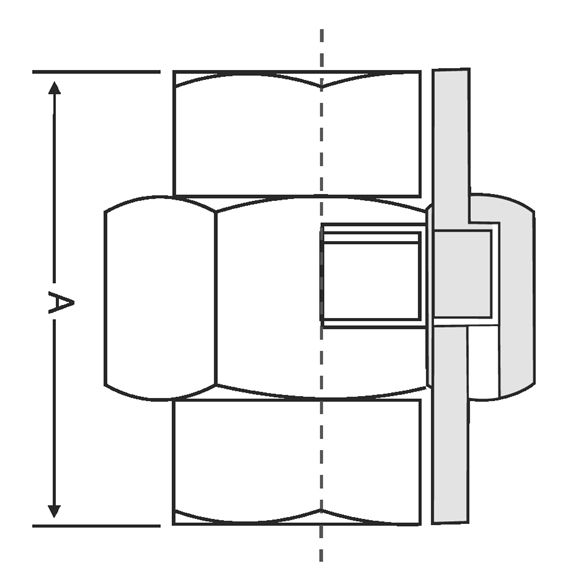

Union

1000 LBS. 90° Female, Equal

Nominal Size (mm) 15 20 25 32 40 50 65 80
A (min.)
 57 67 76 85 100 110 120 135
Material: As per IS:1387:1993 Dimensions: As per IS:1239:2011 (Part-2)/BSEN 10241-2000 Threads: BSP/BSPT/NPT (As per customer's requirement) Hydrostatic Pressure: Min. required 5Mpa, Internally Tested at 1000lbs Galvanization: As per IS:4739 (Min 610gm/cm² Application: Water, Air, Steam, Gas, Oil

Product Image

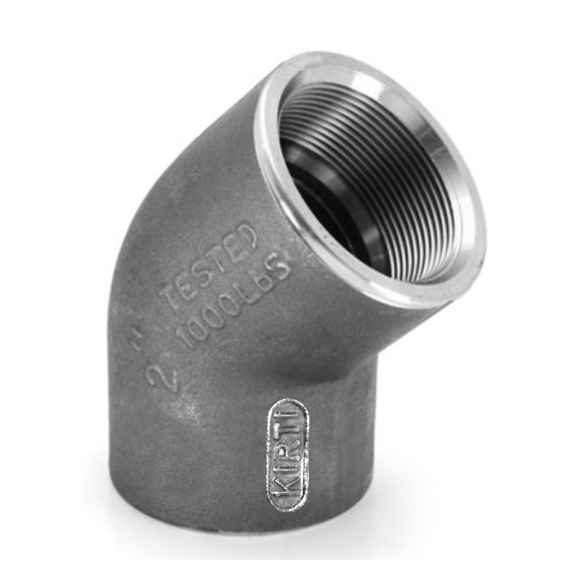

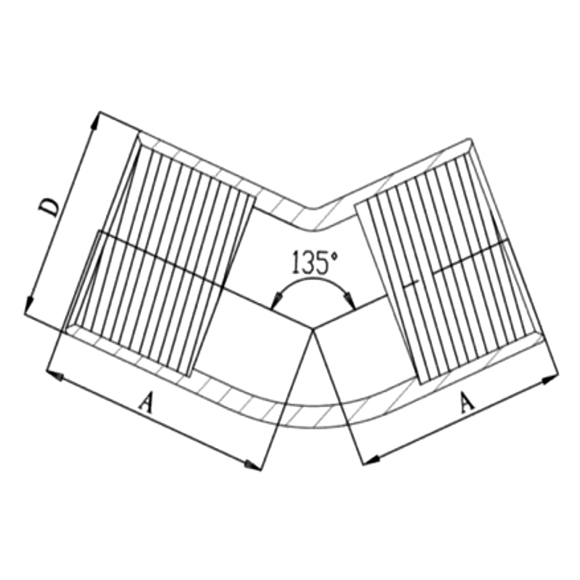

Elbow 45°

1000 LBS.

Nominal Size (mm) 15 20 25 32 40 50 65 80
A (min.)
 22.00 27.00 33.00 38.00 44.00 51.00 60.00 73.00
D 27.00 32.50 39.50 49.00 56.00 68.00 84.00 98.00
Material: As per IS:1387:1993 Dimensions: As per IS:1239:2011 (Part-2)/BSEN 10241-2000 Threads: BSP/BSPT/NPT (As per customer's requirement) Hydrostatic Pressure: Min. required 5Mpa, Internally Tested at 1000lbs Galvanization: As per IS:4739 (Min 610gm/cm² Application: Water, Air, Steam, Gas, Oil

Product Image

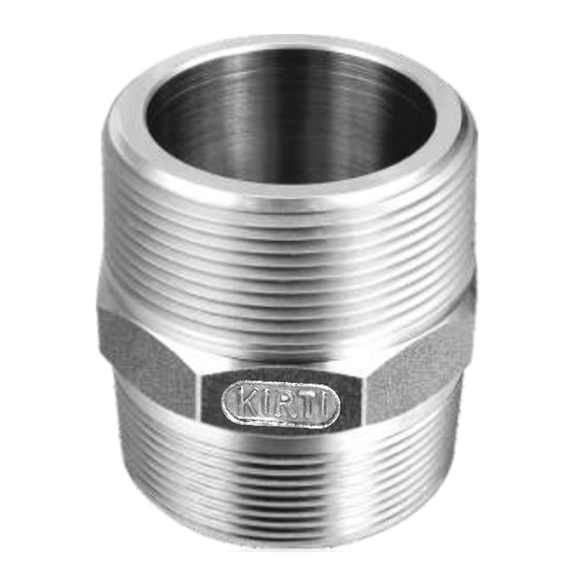

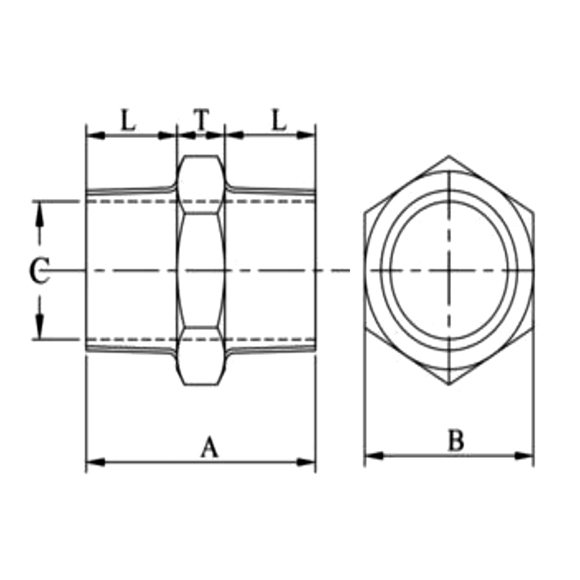

Hex Nipple

1000 LBS. 180° Male, Equal

Nominal Size (mm) 15 20 25 32 40 50 65 80
L (min.)
 17.50 19.00 21.00 24.00 24.00 27.00 32.00 35.00
T (min.)
 08.00 10.00 10.00 11.00 13.00 14.00 16.00 19.00
A (min.)
 43.00 48.00 52.00 59.00 61.00 68.00 80.00 89.00
Material: As per IS:1387:1993 Dimensions: As per IS:1239:2011 (Part-2)/BSEN 10241-2000 Threads: BSP/BSPT/NPT (As per customer's requirement) Hydrostatic Pressure: Min. required 5Mpa, Internally Tested at 1000lbs Galvanization: As per IS:4739 (Min 610gm/cm² Application: Water, Air, Steam, Gas, Oil

Product Image

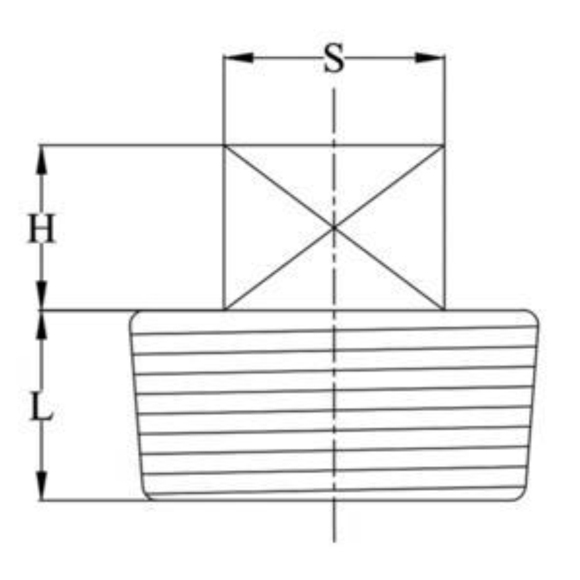

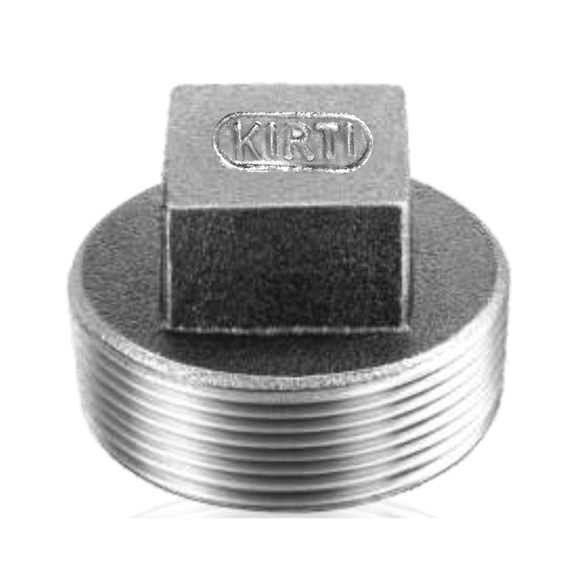

Plug

1000 LBS. Female, Equal

Nominal Size (mm) 15 20 25 32 40 50 65 80
L (min.)
 13.20 14.50 16.80 19.10 19.10 23.40 26.70 29.80
S (min.)
 13.00 14.00 17.00 22.00 27.00 32.00 37.00 37.00
H (min.)
 10.00 12.00 12.00 16.00 16.00 19.19 19.19 22.00
Material: As per IS:1387:1993 Dimensions: As per IS:1239:2011 (Part-2)/BSEN 10241-2000 Threads: BSP/BSPT/NPT (As per customer's requirement) Hydrostatic Pressure: Min. required 5Mpa, Internally Tested at 1000lbs Galvanization: As per IS:4739 (Min 610gm/cm² Application: Water, Air, Steam, Gas, Oil

Product Image

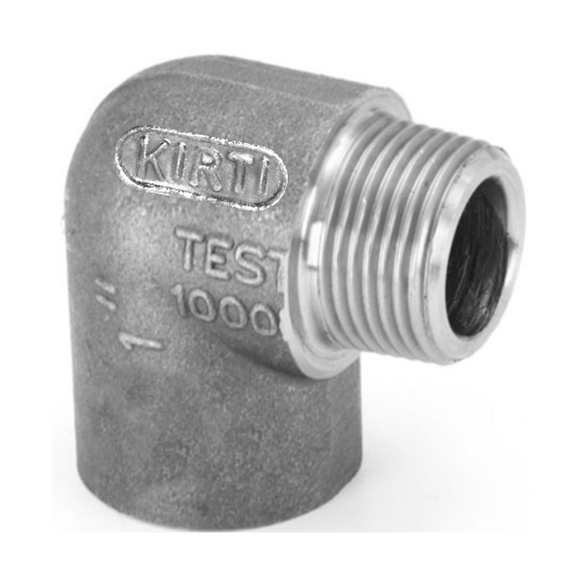

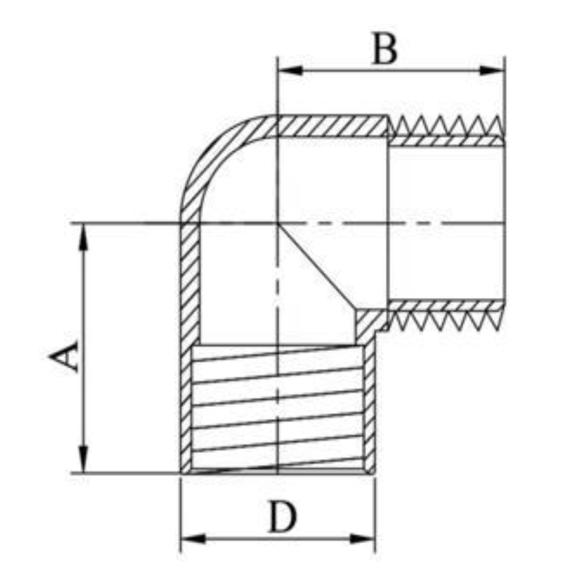

Male/Female Elbow

1000 LBS. 90° Female, Equal

Nominal Size (mm) 15 20 25 32 40 50 65 80
A (min.)
 13.20 14.50 16.80 19.10 19.10 23.40 26.70 29.80
B (min.)
 32.00 40.00 46.00 54.00 57.00 70.00 83.00 94.00
Material: As per IS:1387:1993 Dimensions: As per IS:1239:2011 (Part-2)/BSEN 10241-2000 Threads: BSP/BSPT/NPT (As per customer's requirement) Hydrostatic Pressure: Min. required 5Mpa, Internally Tested at 1000lbs Galvanization: As per IS:4739 (Min 610gm/cm² Application: Water, Air, Steam, Gas, Oil

  • An ISO 9001:2015 Certified Company
+31 615860363

Forged Steel Pipe Fittings

Product Image

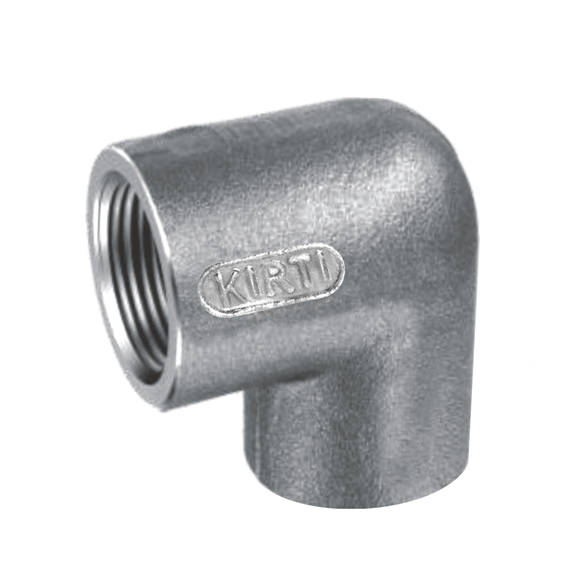

Elbow (1000 lbs)

Product Image

Tee (1000 lbs)

Product Image

Socket (1000 lbs)

Product Image

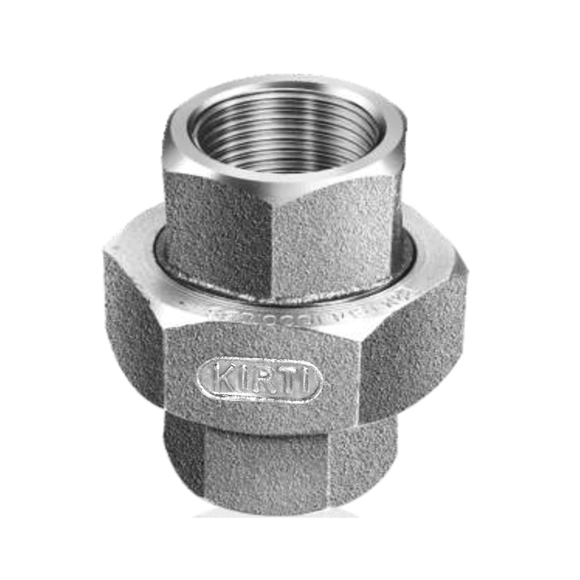

Union (1000 lbs)

Product Image

Elbow 45° (1000 lbs)

Product Image

Hex Nipple (1000 lbs)

Product Image

Plug (1000 lbs)

Product Image

Male/Female Elbow (1000 lbs)



Features
  • Accurate & Perfect threading to right angle of 90°.
  • Screwed Female end to BSP/BSPT & NPT or as per customer's requirement.
  • High quality anti-rust coating.
  • Strong, Durable and Total Safety.
  • Superior grade forging to ensure crack free installation.
