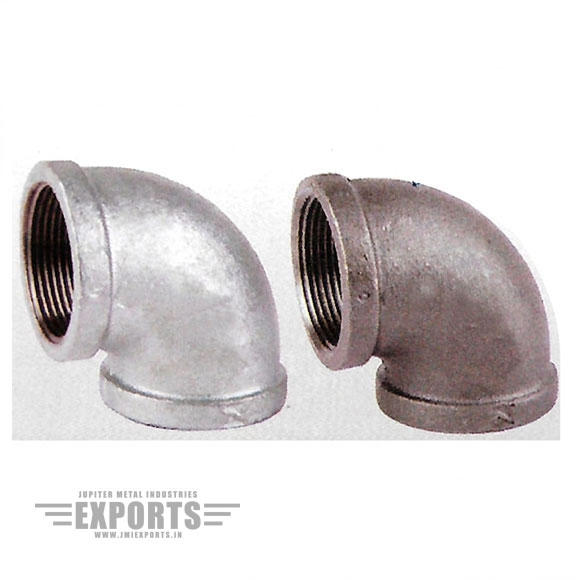

Elbow 90°

Size Inch 3/8 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2 3 4
Dim. (mm) A 25 28 33 38 45 50 58 69 78 96

Product Image

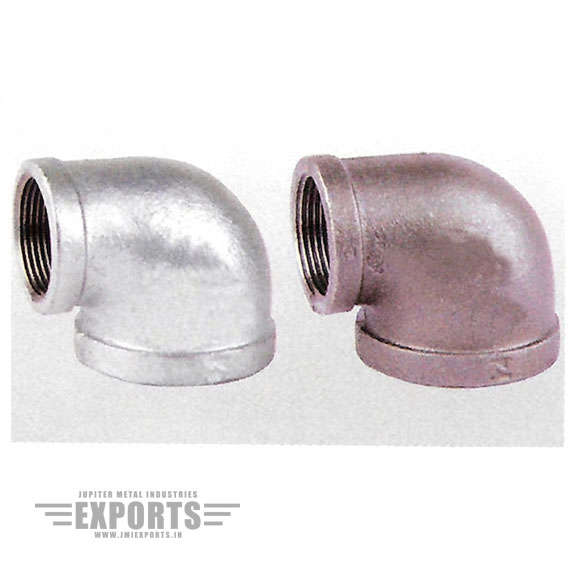

Reducing Elbow 90°

Size Inch ½ x 3/8 ¾ x ½ 1 x 3/8 1 x ½ 1 x ¾ 1¼ x ½ 1¼ x ¾ 1¼ x 1 1½ x ¾
Dim. (mm)
 A 26 30 32 32 35 35 36 40 38
Size Inch 1½ x 1 1½ x 1¼ 2 x 1 2 x 1¼ 2 x 1½ -- -- -- --
Dim. (mm) A 42 46 44 48 52 -- -- -- --

Product Image

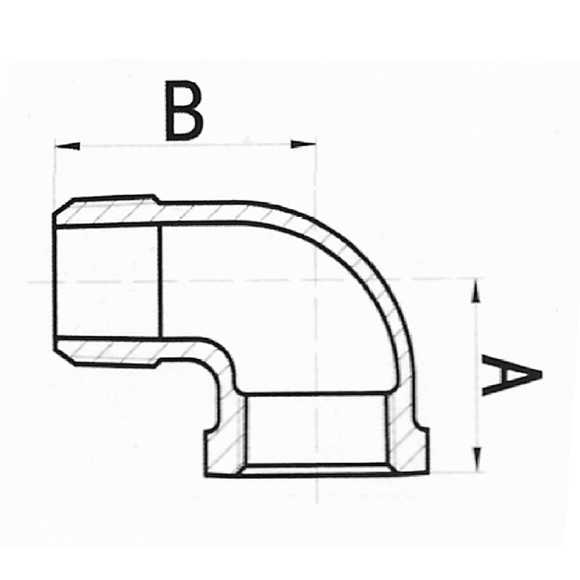

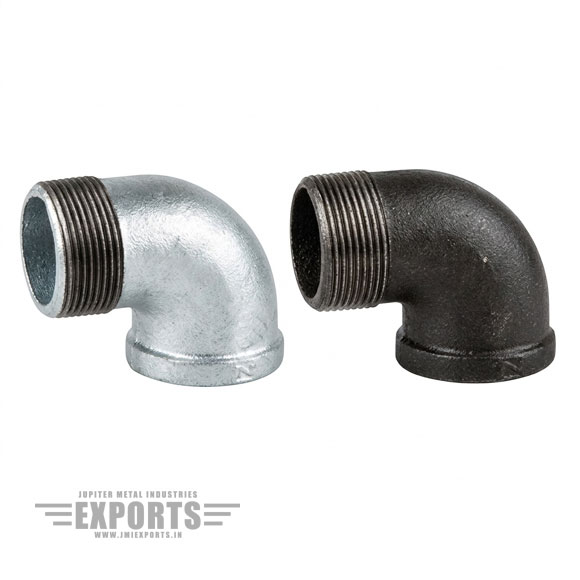

Elbow 90°Male/Female

Size Inch 3/8 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2 3 4
Dim. (mm) A 25 28 33 38 45 50 58 69 78 96
Dim. (mm) B 32 37 43 52 60 65 74 88 98 118

Product Image

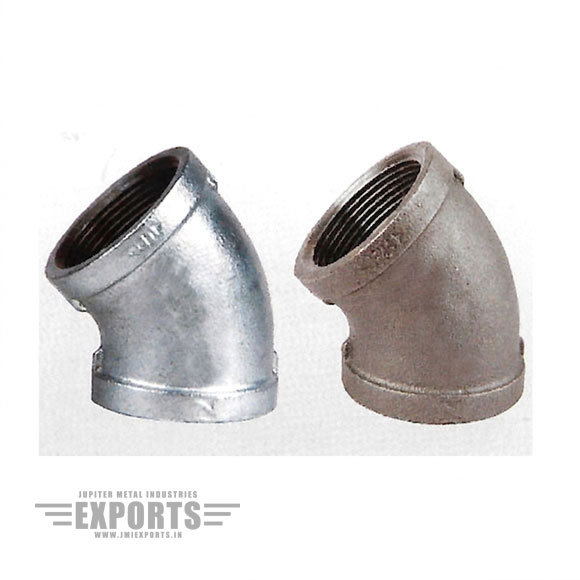

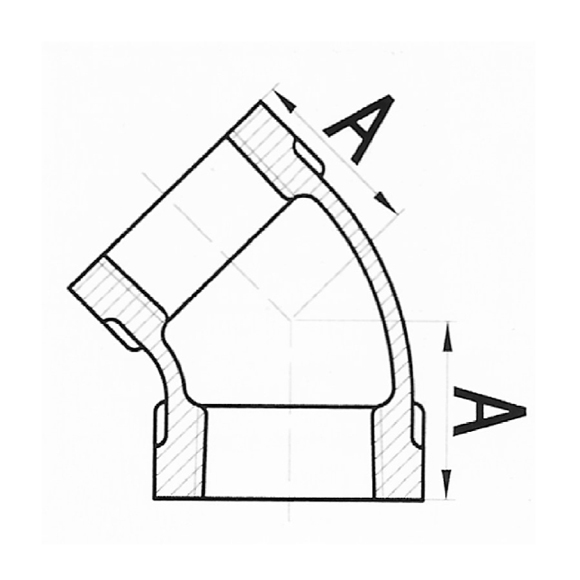

Elbow 45°

Size Inch 3/8 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2 3
Dim. (mm)
 A 20 22 25 28 33 36 43 48 54

Product Image

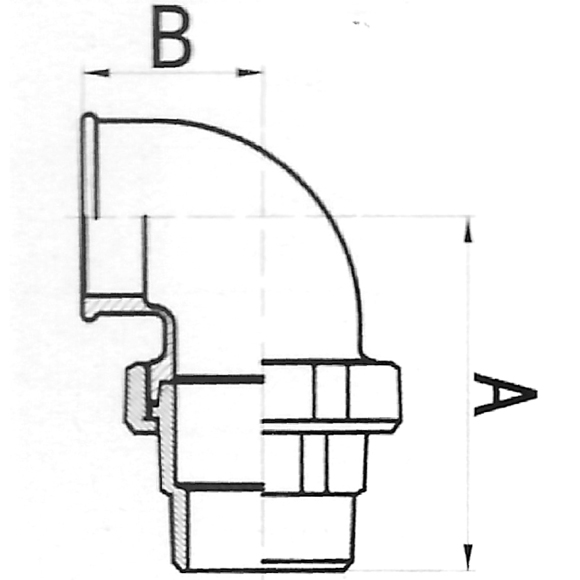

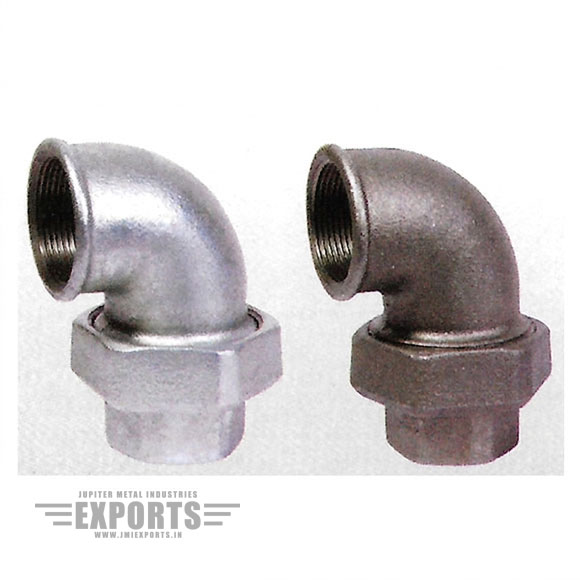

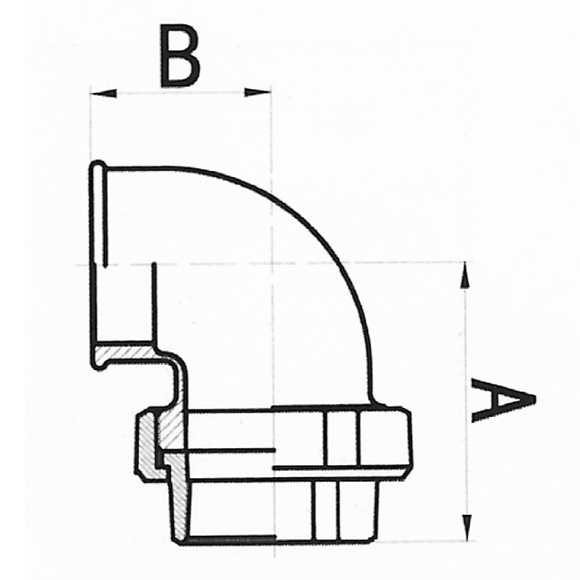

Union Elbow, Taper/Flat Seat F/F

Size Inch 1/2 3/4 1 1-1/4 1-1/2 2
Dim. (mm)
 A 58 62 72 82 90 100
Dim. (mm)
 B 28 33 38 45 50 58

Product Image

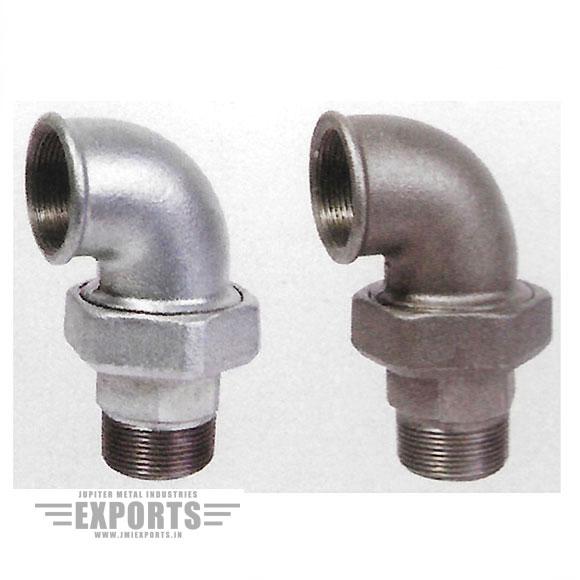

Union Elbow, M/F, Flat/Taper Seat

Size Inch 1/2 3/4 1 1-1/4 1-1/2 2
Dim. (mm)
 A 28 33 38 45 50 58
Dim. (mm)
 B 58 62 72 82 90 100

Product Image

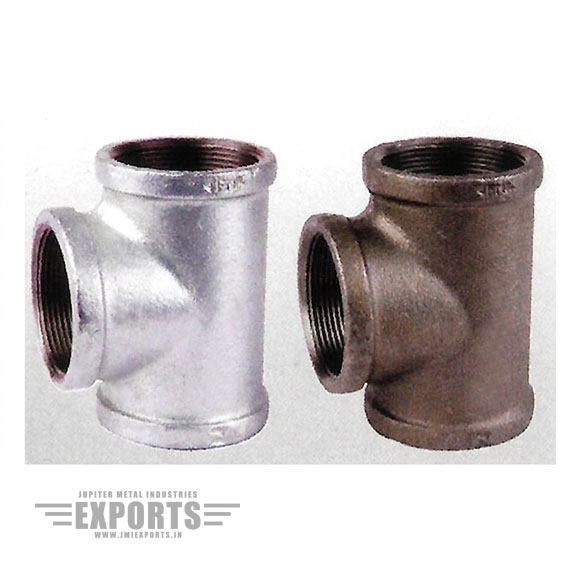

Tee, Equal

Size Inch 3/8 1/2 3/4 1 1-1/4 1-1/2 2 2-2/1 3 4
Dim. (mm)
 A 25 28 33 38 45 50 58 69 78 96

Product Image

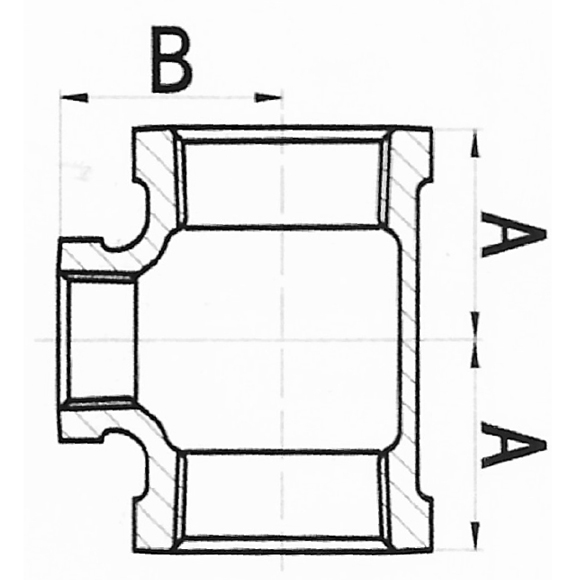

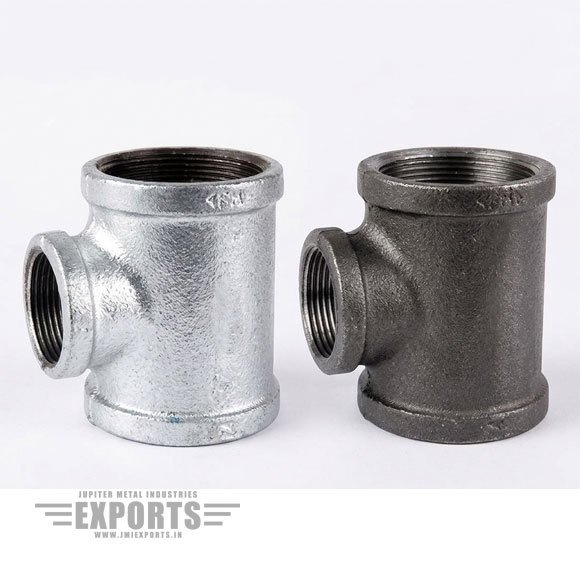

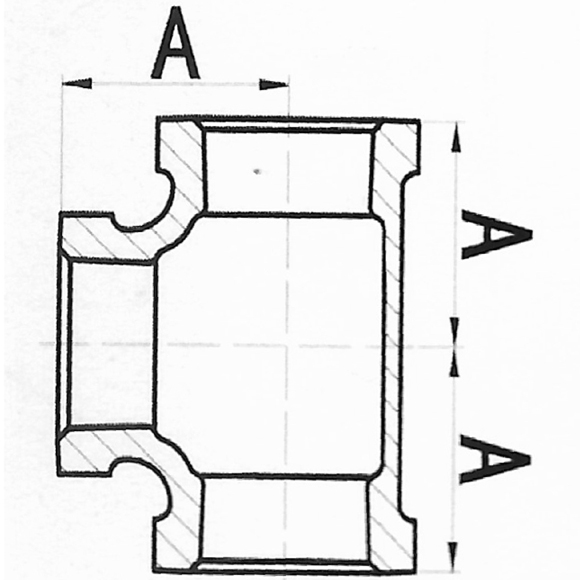

Reducing Tee

Size Inch ½ x 3/8 ¾ x ½ 1 x ½ 1 x ¾ 1¼ x ½ 1¼ x ¾ 1¼ x 1 1½ x ½ 1½ x ¾
Dim. (mm)
 A 26 31 34 36 34 36 40 36 36
Size Inch 1½ x 1 1½ x 1¼ 2 x ½ 2 x ¾ 2 x 1 2 x 1¼ 2 x 1½ -- --
Dim. (mm) A 42 46 38 40 44 48 52 -- --

Product Image

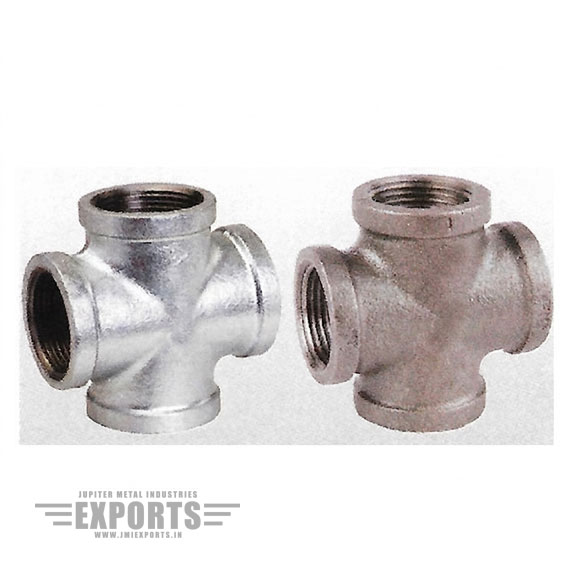

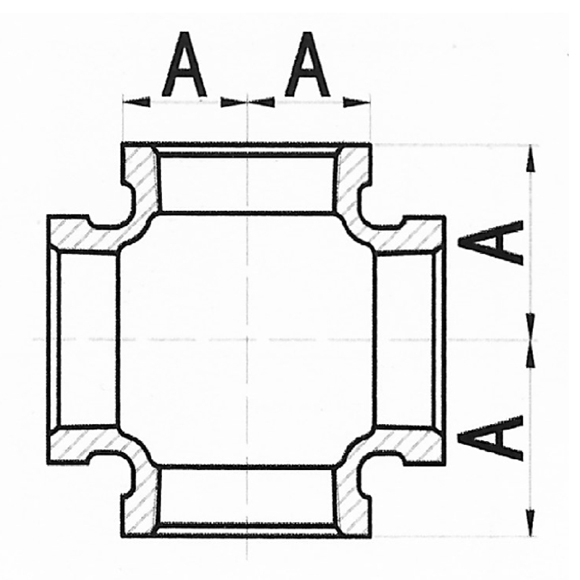

Cross

Size Inch 1/2 3/4 1 1-1/4 1-1/2 2 2-2/1 3 4
Dim. (mm)
 A 28 33 38 45 50 58 69 78 96

Product Image

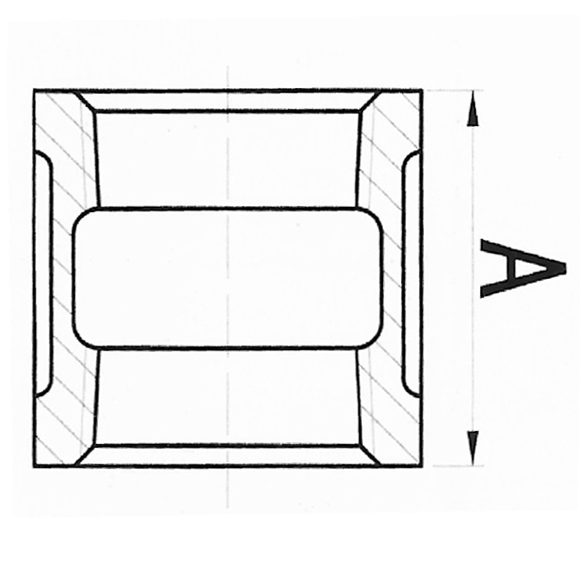

Socket

Size Inch 3/8 1/2 3/4 1 1-1/4 1-1/2 2 2-2/1 3 4
Dim. (mm)
 A 30 36 39 45 50 56 65 74 80 94

Product Image

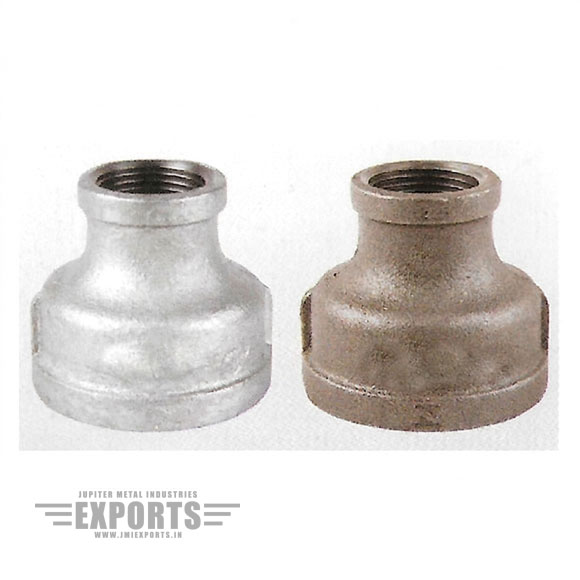

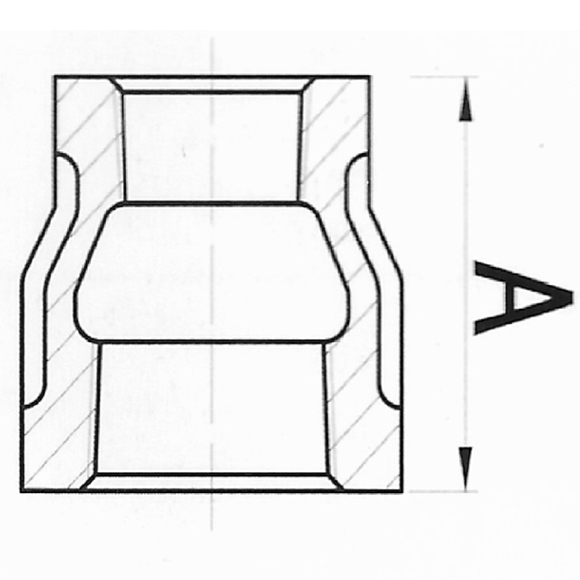

Reducing Socket

Size Inch ½ x 3/8 ¾ x ½ 1 x ½ 1 x ¾ 1¼ x ½ 1¼ x ¾ 1¼ x 1 1½ x ½ 1½ x ¾
Dim. (mm)
 A 36 39 45 45 50 50 50 55 55
Size Inch 1½ x 1 1½ x 1¼ 2 x ½ 2 x ¾ 2 x 1 2 x 1¼ 2 x 1½ -- --
Dim. (mm) A 55 55 65 65 65 65 65 -- --

Product Image

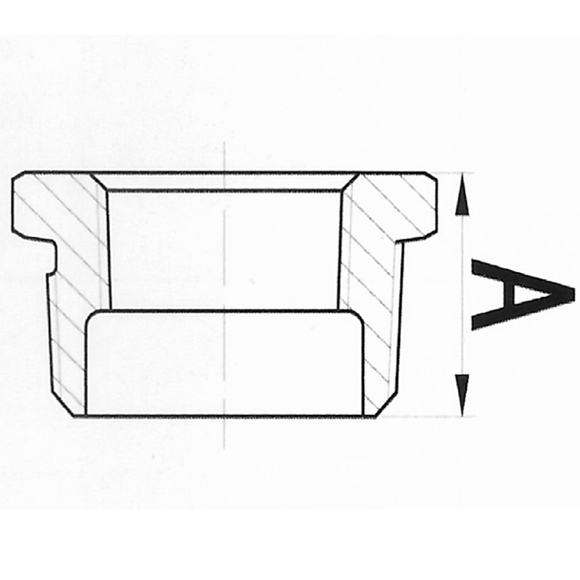

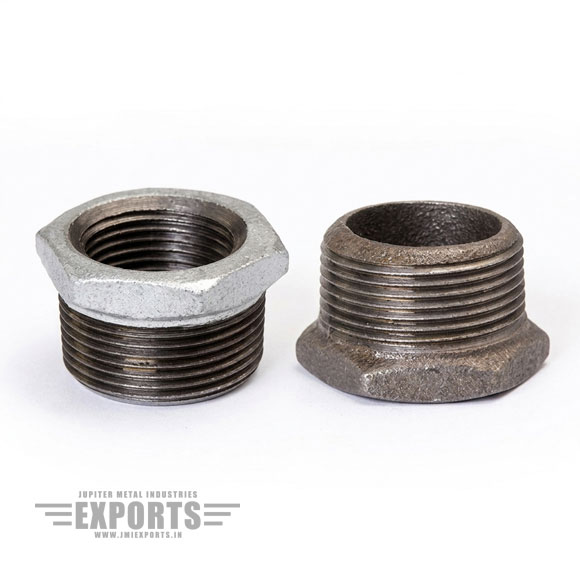

Reducing Bushing

Size Inch ½ x 3/8 ¾ x ½ 1 x ½ 1 x ¾ 1¼ x ½ 1¼ x ¾ 1¼ x 1 1½ x ½ 1½ x ¾
Dim. (mm)
 A 24 26 29 29 31 31 31 31 31
Size Inch 1½ x 1 1½ x 1¼ 2 x ½ 2 x ¾ 2 x 1 2 x 1¼ 2 x 1½ -- --
Dim. (mm) A 31 33 35 35 37 37 37 -- --

Product Image

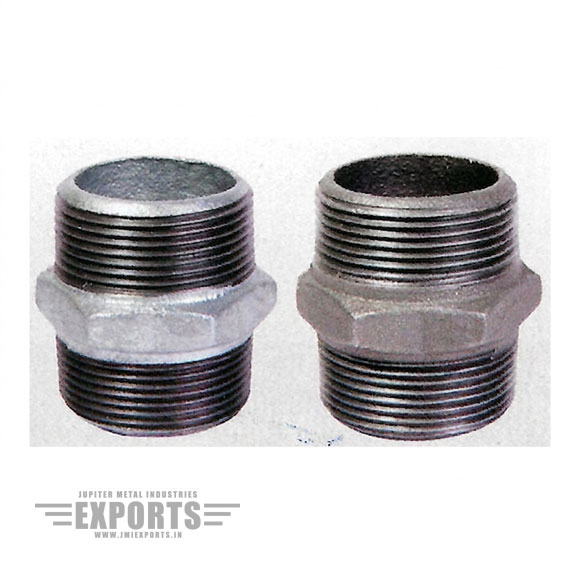

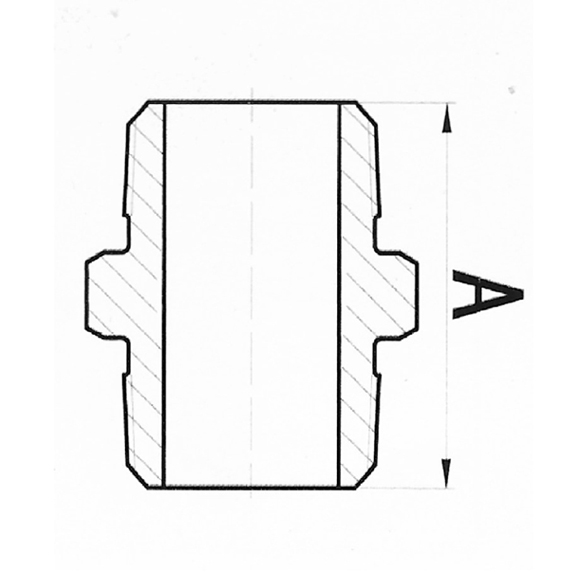

Hexagon Nipple

Size Inch 3/8 1/2 3/4 1 1-1/4 1-1/2 2 2-2/1 3 4
Dim. (mm)
 A 38 44 47 53 57 59 68 75 83 95

Product Image

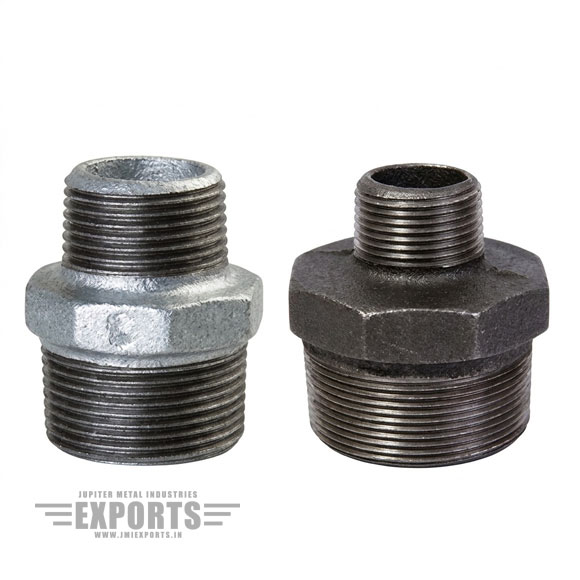

Reducing Hexagon Nipple

Size Inch 3/8 x ½ ¾ x ½ 1 x ½ 1 x ¾ 1¼ x ½ 1¼ x ¾ 1¼ x 1 1½ x ¾ 1½ x 1
Dim. (mm)
 A 44 47 53 53 57 57 57 59 59
Size Inch 1½ x 1¼ 2 x 1 2 x 1¼ 2 x 1½ -- -- -- -- --
Dim. (mm) A 59 55 68 68 -- -- -- -- --

  • An ISO 9001:2015 Certified Company
+31 615860363



G.I. Pipe Fittings (International / For Export) - Banded Fittings

Standards American British
Design
 ANSI/ASME B-16.3
ANSI/ASME B-16.14
ANSI/ASME B-16.39		 BS EN 10242
Threads ANSI/ASME B-1.20.1 BS 21
Material ASTM A-197 BS 6681
Galvanizing ASTM A-153 BS 729
Type BANDED BANDED

Product Image ART NO. 90

Elbow 90°

Product Image ART NO. 90R

Reducing Elbow 90°

Product Image ART NO. 92

Elbow 90°Male/Female

Product Image ART NO. 120

Elbow 45°

Product Image ART NO. 95/96

Union Elbow, Taper/Flat Seat F/F

Product Image ART NO. 97/98

Union Elbow, M/F, Flat/Taper Seat

Product Image ART NO. 130

Tee, Equal

Product Image ART NO. 130R

Reducing Tee

Product Image ART NO. 180

Cross

Product Image ART NO. 220

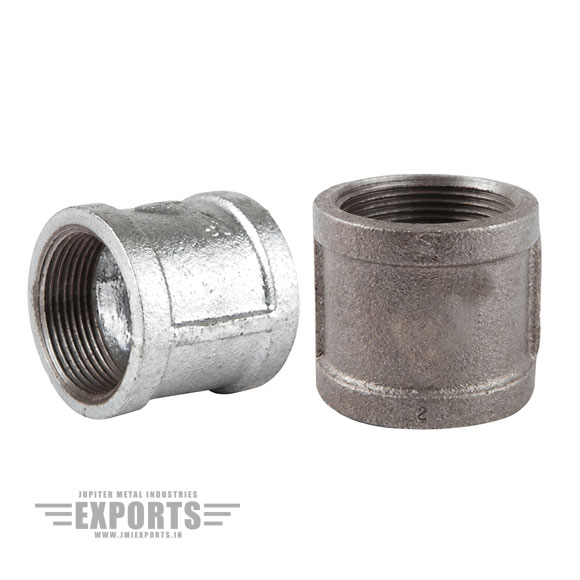

Socket

Product Image ART NO. 240

Reducing Socket

Product Image ART NO. 241

Reducing Bushing

Product Image ART NO. 280

Hexagonal Nipple

Product Image ART NO. 245

Reducing Hexagon Nipple
