| Code | Size | Weight |
|---|---|---|
| GV-01 | 1/2" | 200 Grams |
| GV-02 | 3/4" | 380 Grams |
| GV-03 | 1" | 425 Grams |
| GV-04 | 1.1/2" | 950 Grams |

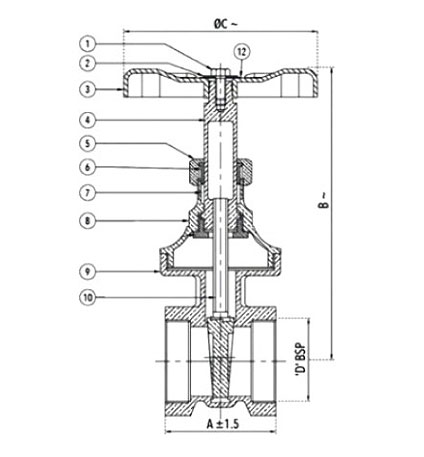

| Part No. | Name of Part | Material | Quantity |
|---|---|---|---|
| 1 |
Screw/Bolt | Carbon Steel (Zinc Plated) | 01 |
| 2 | Washer | Carbon Steel (Zinc Plated) | 01 |
| 3 | Hand Wheel | Aluminum (Powder Coated) | 01 |
| 4 | Stem | Forged Brass | 01 |
| 5 | Gland Nut | Forged Brass | 01 |
| 6 | Gland | Forged Brass | 01 |
| 7 | Gland Packing | Rubber 'O Ring' | - |
| 8 | Bonnet | Forged Brass | 01 |
| 9 | Body | Forged Brass | 01 |
| 10 | Wedge | Forged Brass | 01 |
