Product Image

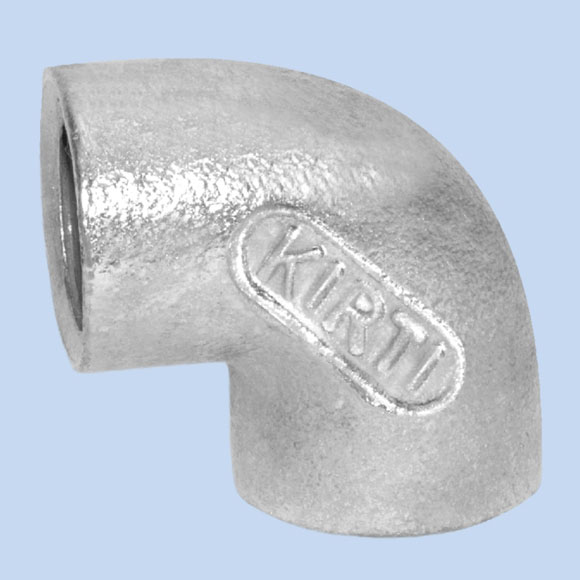

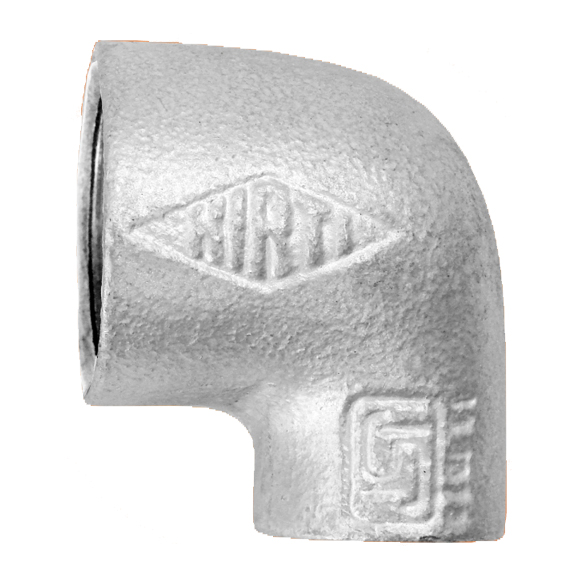

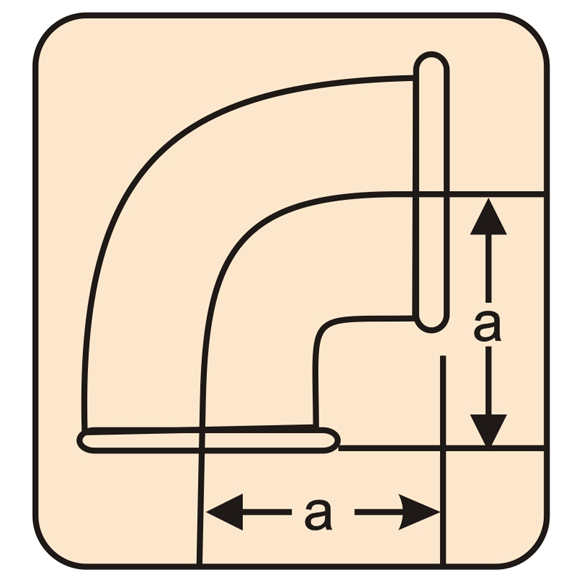

Elbow A1

Inches 1/4 3/8 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2 3 4 5 6
MM
 8 10 15 20 25 32 40 50 65 80 100 125 150
a 21 25 28 33 38 45 50 58 69 78 96 115 131
Material: Black heart malleable cast iron as per IS:14329-1995 Grade BM300 Compression: Up to 2" Compression is 5% (Min.)/ 2½" to 6" Compression is 3% (Min.) Galvanization: Hot dip galvanized as per IS:4759-1996. Minimum Zinc coating 610gm/m² Threads: As per IS:554-1999 both parallel & taper. Dimensions: Malleable Cast Iron Pipe Fittings as per IS:1879-2010 Part 1 to 3. Pressure: 21kg/cm² - 300Lbs/inch² (Hydraulic).

Product Image

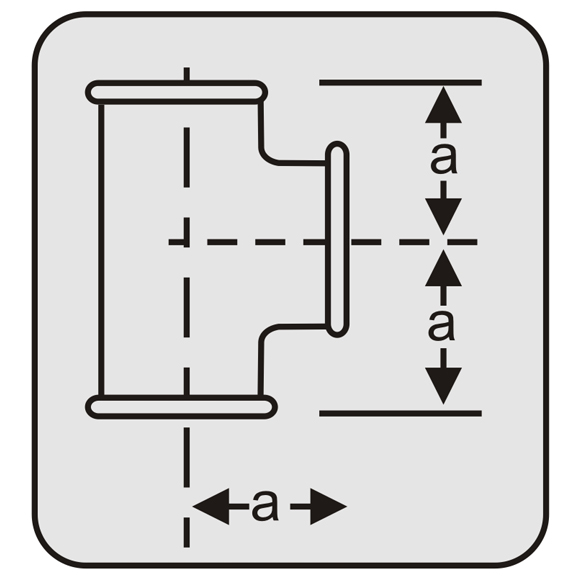

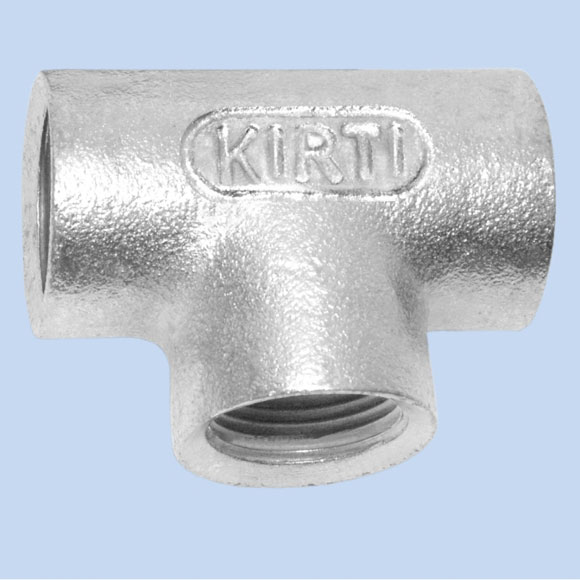

Tee B1

Inches 1/4 3/8 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2 3 4 5 6
MM
 8 10 15 20 25 32 40 50 65 80 100 125 150
a 21 25 28 33 38 45 50 58 69 78 96 115 131
Material: Black heart malleable cast iron as per IS:14329-1995 Grade BM300 Compression: Up to 2" Compression is 5% (Min.)/ 2½" to 6" Compression is 3% (Min.) Galvanization: Hot dip galvanized as per IS:4759-1996. Minimum Zinc coating 610gm/m² Threads: As per IS:554-1999 both parallel & taper. Dimensions: Malleable Cast Iron Pipe Fittings as per IS:1879-2010 Part 1 to 3. Pressure: 21kg/cm² - 300Lbs/inch² (Hydraulic).

Product Image

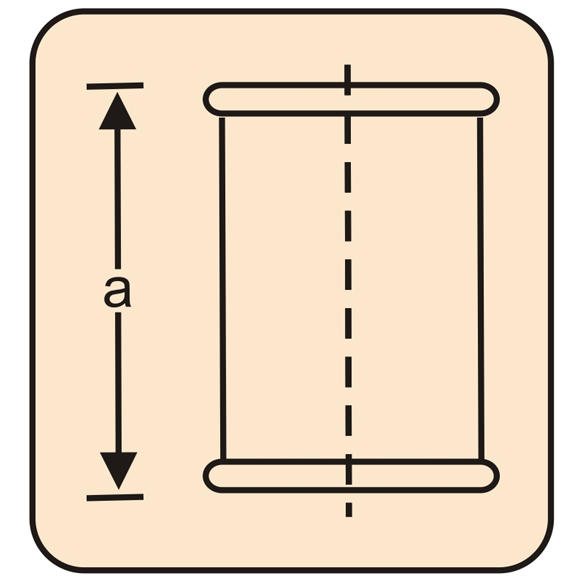

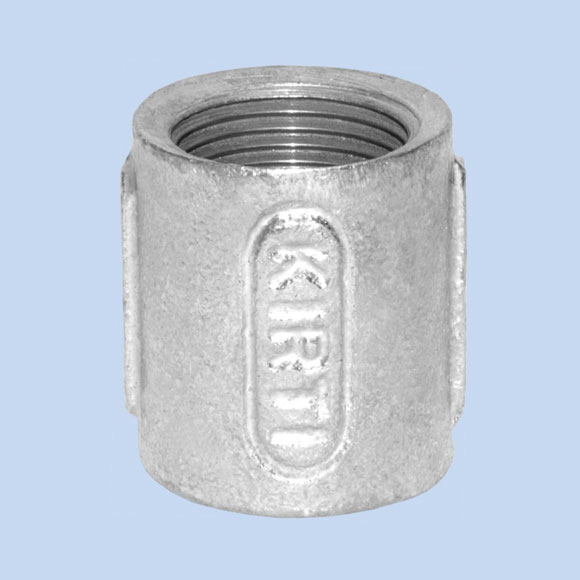

Socket M2

Inches 1/4 3/8 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2 3 4 5 6
MM
 8 10 15 20 25 32 40 50 65 80 100 125 150
a 27 30 36 39 45 50 55 65 71 78 94 109 120
Material: Black heart malleable cast iron as per IS:14329-1995 Grade BM300 Compression: Up to 2" Compression is 5% (Min.)/ 2½" to 6" Compression is 3% (Min.) Galvanization: Hot dip galvanized as per IS:4759-1996. Minimum Zinc coating 610gm/m² Threads: As per IS:554-1999 both parallel & taper. Dimensions: Malleable Cast Iron Pipe Fittings as per IS:1879-2010 Part 1 to 3. Pressure: 21kg/cm² - 300Lbs/inch² (Hydraulic).

Product Image

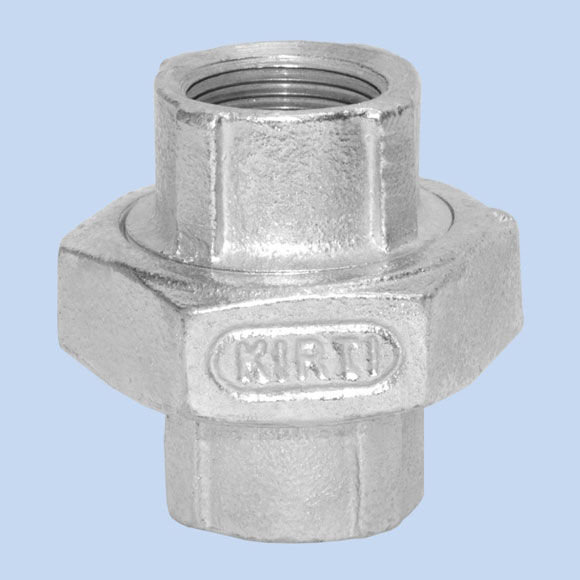

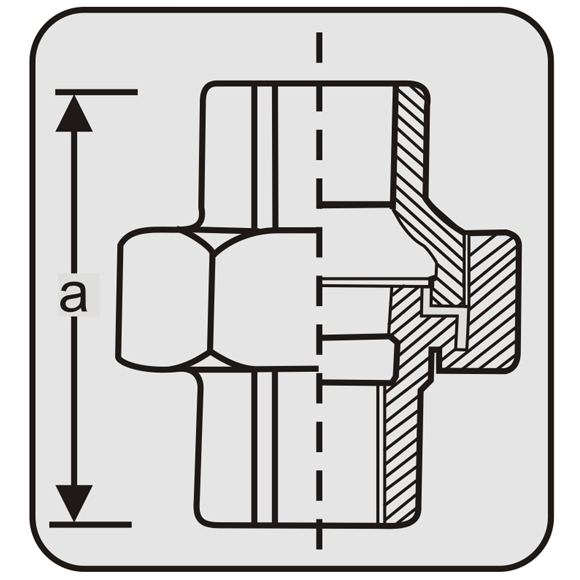

Union U1

Inches 1/4 3/8 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2 3 4 5 6
MM
 8 10 15 20 25 32 40 50 65 80 100 125 150
a 42 45 48 52 58 65 70 78 85 95 110 135 150
Material: Black heart malleable cast iron as per IS:14329-1995 Grade BM300 Compression: Up to 2" Compression is 5% (Min.)/ 2½" to 6" Compression is 3% (Min.) Galvanization: Hot dip galvanized as per IS:4759-1996. Minimum Zinc coating 610gm/m² Threads: As per IS:554-1999 both parallel & taper. Dimensions: Malleable Cast Iron Pipe Fittings as per IS:1879-2010 Part 1 to 3. Pressure: 21kg/cm² - 300Lbs/inch² (Hydraulic).

Product Image

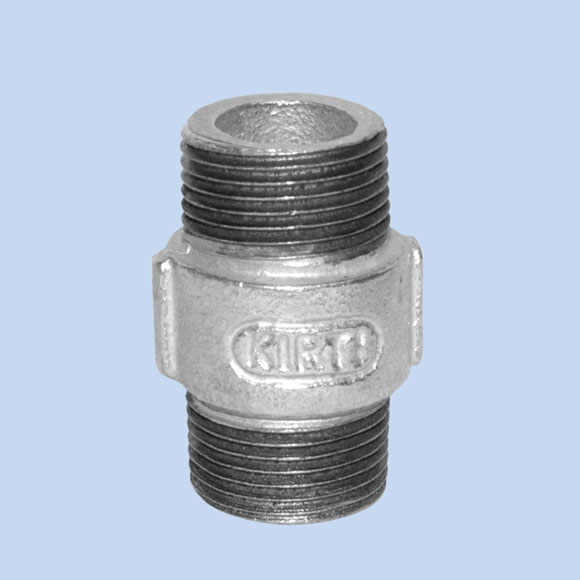

Nipple N8

Inches 1/4 3/8 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2 3 4 5 6
MM
 8 10 15 20 25 32 40 50 65 80 100 125 150
a 36 38 44 47 53 57 59 68 75 83 95 -- --
Material: Black heart malleable cast iron as per IS:14329-1995 Grade BM300 Compression: Up to 2" Compression is 5% (Min.)/ 2½" to 6" Compression is 3% (Min.) Galvanization: Hot dip galvanized as per IS:4759-1996. Minimum Zinc coating 610gm/m² Threads: As per IS:554-1999 both parallel & taper. Dimensions: Malleable Cast Iron Pipe Fittings as per IS:1879-2010 Part 1 to 3. Pressure: 21kg/cm² - 300Lbs/inch² (Hydraulic).

Product Image

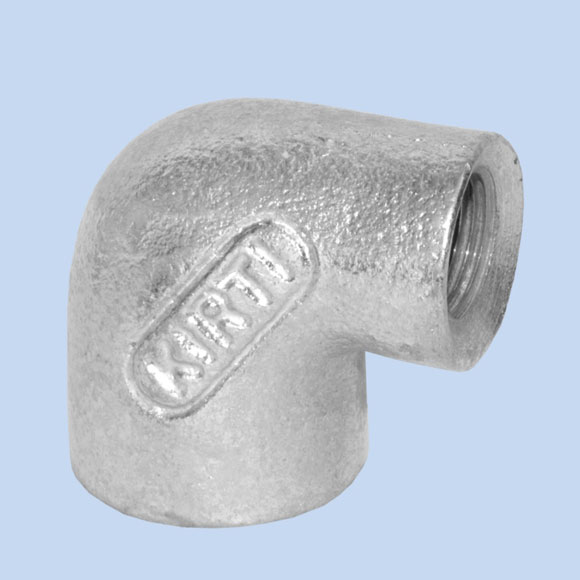

Reducing Elbow A1

Material: Black heart malleable cast iron as per IS:14329-1995 Grade BM300 Compression: Up to 2" Compression is 5% (Min.)/ 2½" to 6" Compression is 3% (Min.) Galvanization: Hot dip galvanized as per IS:4759-1996. Minimum Zinc coating 610gm/m² Threads: As per IS:554-1999 both parallel & taper. Dimensions: Malleable Cast Iron Pipe Fittings as per IS:1879-2010 Part 1 to 3. Pressure: 21kg/cm² - 300Lbs/inch² (Hydraulic).

Product Image

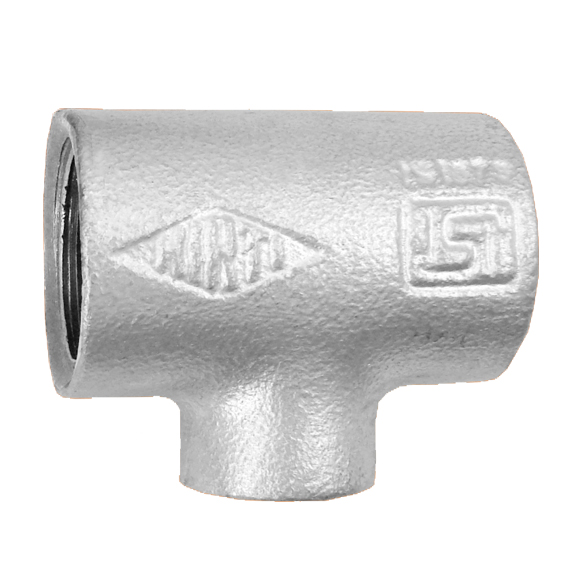

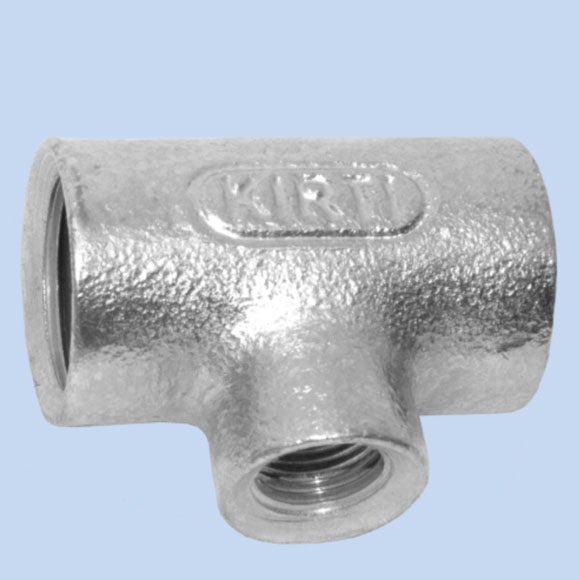

Reducing Tee B1

Material: Black heart malleable cast iron as per IS:14329-1995 Grade BM300 Compression: Up to 2" Compression is 5% (Min.)/ 2½" to 6" Compression is 3% (Min.) Galvanization: Hot dip galvanized as per IS:4759-1996. Minimum Zinc coating 610gm/m² Threads: As per IS:554-1999 both parallel & taper. Dimensions: Malleable Cast Iron Pipe Fittings as per IS:1879-2010 Part 1 to 3. Pressure: 21kg/cm² - 300Lbs/inch² (Hydraulic).

Product Image

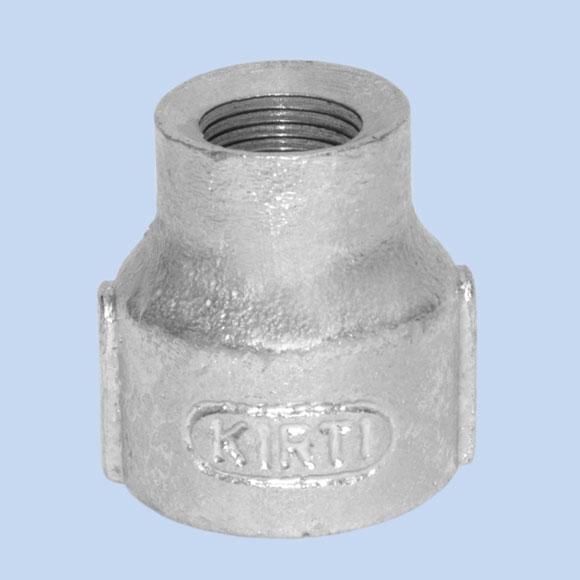

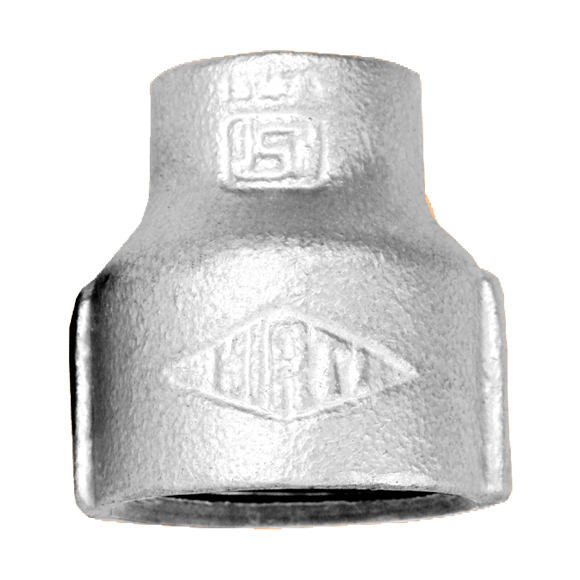

Reducing Socket M2

Material: Black heart malleable cast iron as per IS:14329-1995 Grade BM300 Compression: Up to 2" Compression is 5% (Min.)/ 2½" to 6" Compression is 3% (Min.) Galvanization: Hot dip galvanized as per IS:4759-1996. Minimum Zinc coating 610gm/m² Threads: As per IS:554-1999 both parallel & taper. Dimensions: Malleable Cast Iron Pipe Fittings as per IS:1879-2010 Part 1 to 3. Pressure: 21kg/cm² - 300Lbs/inch² (Hydraulic).

Product Image

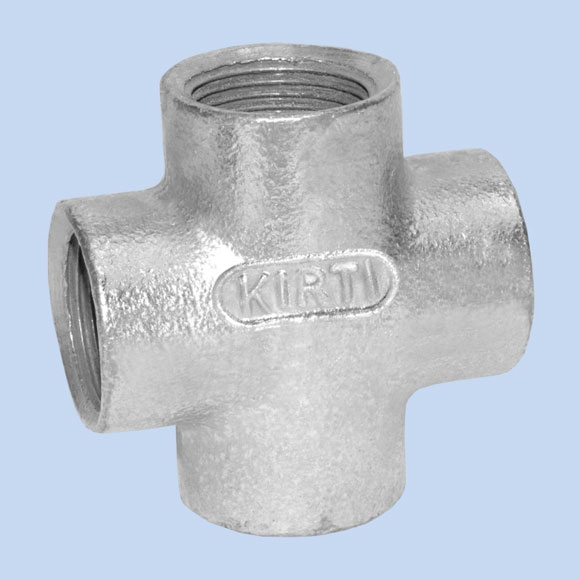

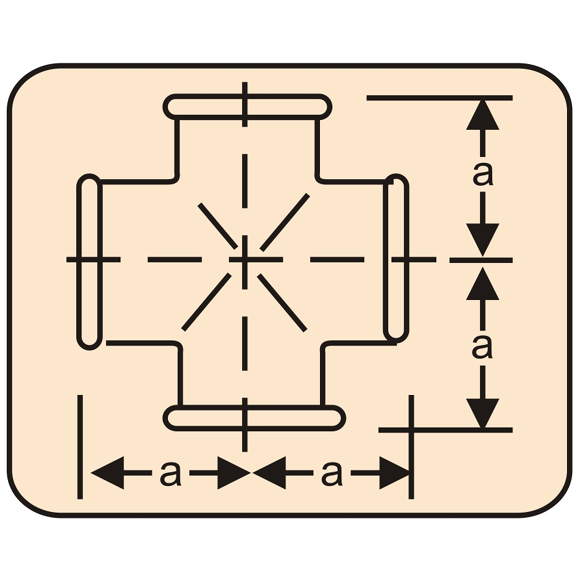

Cross C1

Inches 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2 3 4 5 6
MM
 15 20 25 32 40 50 65 80 100 125 150
a 28 33 38 45 50 58 69 78 96 115 131
Material: Black heart malleable cast iron as per IS:14329-1995 Grade BM300 Compression: Up to 2" Compression is 5% (Min.)/ 2½" to 6" Compression is 3% (Min.) Galvanization: Hot dip galvanized as per IS:4759-1996. Minimum Zinc coating 610gm/m² Threads: As per IS:554-1999 both parallel & taper. Dimensions: Malleable Cast Iron Pipe Fittings as per IS:1879-2010 Part 1 to 3. Pressure: 21kg/cm² - 300Lbs/inch² (Hydraulic).

Product Image

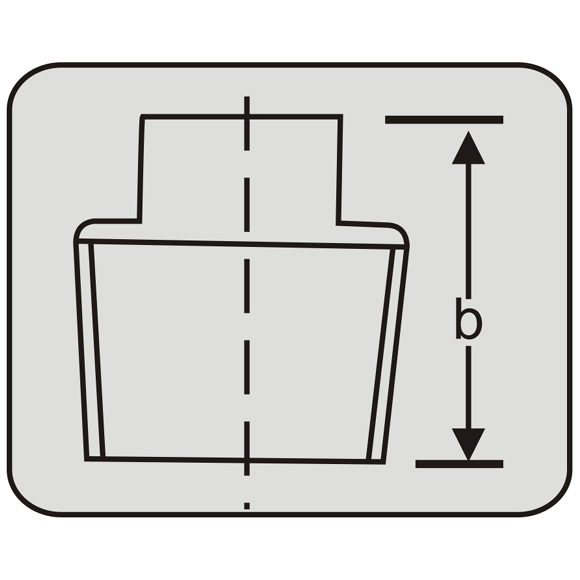

Plug T8

Inches 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2 3 4 5 6
MM
 15 20 25 32 40 50 65 80 100 125 150
a 18 20 23 29 30 36 39 44 58 68 70
Material: Black heart malleable cast iron as per IS:14329-1995 Grade BM300 Compression: Up to 2" Compression is 5% (Min.)/ 2½" to 6" Compression is 3% (Min.) Galvanization: Hot dip galvanized as per IS:4759-1996. Minimum Zinc coating 610gm/m² Threads: As per IS:554-1999 both parallel & taper. Dimensions: Malleable Cast Iron Pipe Fittings as per IS:1879-2010 Part 1 to 3. Pressure: 21kg/cm² - 300Lbs/inch² (Hydraulic).

Product Image

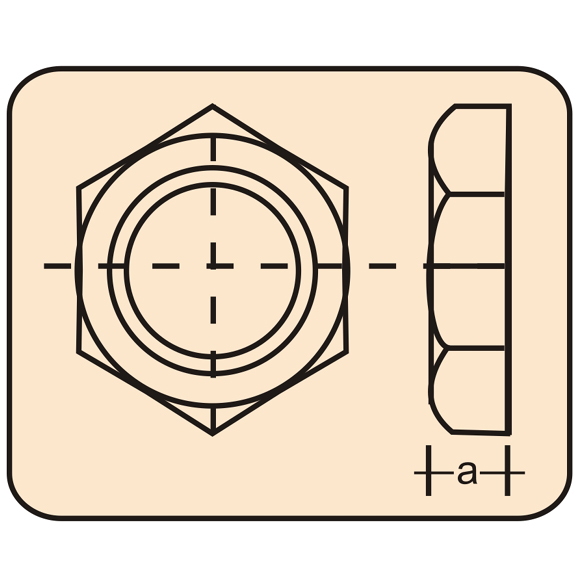

Back Nut (Checknut) P4

Inches 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2 3 4 5 6
MM
 15 20 25 32 40 50 65 80 100 125 150
a 8 9 10 11 12 13 16 19 21 -- --
Material: Black heart malleable cast iron as per IS:14329-1995 Grade BM300 Compression: Up to 2" Compression is 5% (Min.)/ 2½" to 6" Compression is 3% (Min.) Galvanization: Hot dip galvanized as per IS:4759-1996. Minimum Zinc coating 610gm/m² Threads: As per IS:554-1999 both parallel & taper. Dimensions: Malleable Cast Iron Pipe Fittings as per IS:1879-2010 Part 1 to 3. Pressure: 21kg/cm² - 300Lbs/inch² (Hydraulic).

Product Image

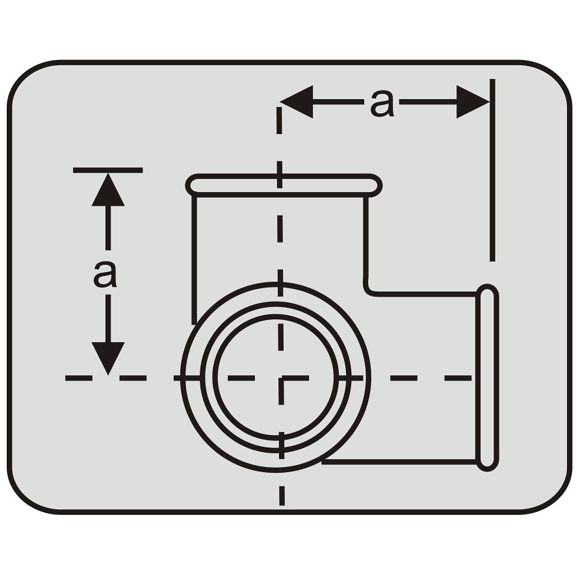

Side Outlet (3-Way Elbow) Za1

Inches 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2 3 4 5 6
MM
 15 20 25 32 40 50 65 80 100 125 150
a 28 33 38 45 50 58 69 78 96 115 131
Material: Black heart malleable cast iron as per IS:14329-1995 Grade BM300 Compression: Up to 2" Compression is 5% (Min.)/ 2½" to 6" Compression is 3% (Min.) Galvanization: Hot dip galvanized as per IS:4759-1996. Minimum Zinc coating 610gm/m² Threads: As per IS:554-1999 both parallel & taper. Dimensions: Malleable Cast Iron Pipe Fittings as per IS:1879-2010 Part 1 to 3. Pressure: 21kg/cm² - 300Lbs/inch² (Hydraulic).

Product Image

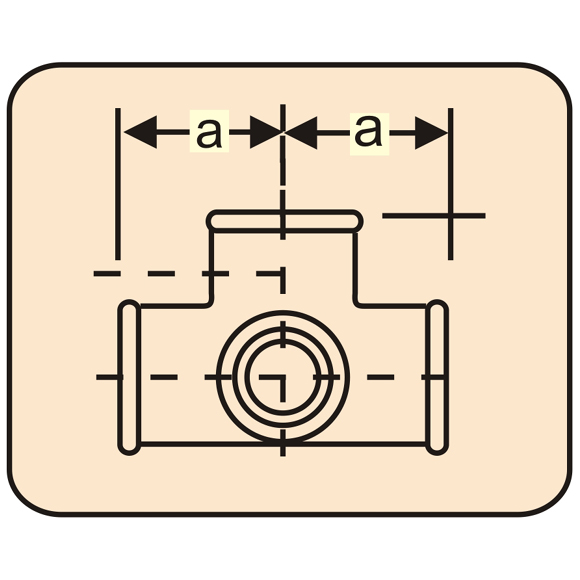

Side Outlet Tee (4-Way Tee) Za2

Inches 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2 3 4 5 6
MM
 15 20 25 32 40 50 65 80 100 125 150
a 28 33 38 45 50 58 69 78 96 115 131
Material: Black heart malleable cast iron as per IS:14329-1995 Grade BM300 Compression: Up to 2" Compression is 5% (Min.)/ 2½" to 6" Compression is 3% (Min.) Galvanization: Hot dip galvanized as per IS:4759-1996. Minimum Zinc coating 610gm/m² Threads: As per IS:554-1999 both parallel & taper. Dimensions: Malleable Cast Iron Pipe Fittings as per IS:1879-2010 Part 1 to 3. Pressure: 21kg/cm² - 300Lbs/inch² (Hydraulic).

Product Image

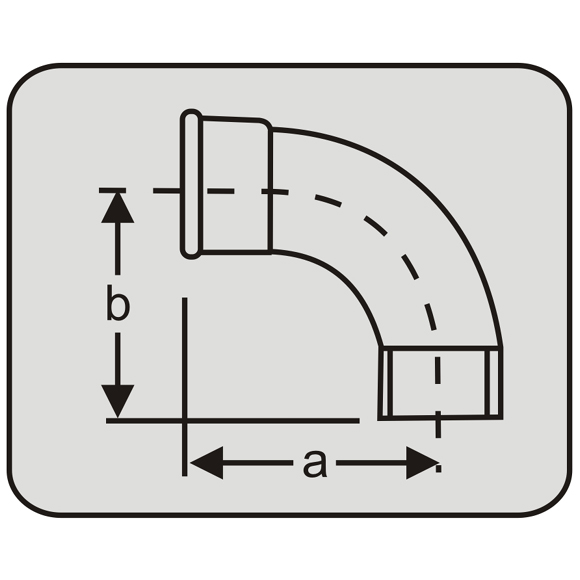

Long Sweep Bend (Short Bend) Male/Female G4

Inches 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2 3 4
MM
 15 20 25 32 40 50 65 80 100
a 55 69 85 105 116 140 176 205 260
b 48 60 75 95 105 130 165 190 245
Material: Black heart malleable cast iron as per IS:14329-1995 Grade BM300 Compression: Up to 2" Compression is 5% (Min.)/ 2½" to 6" Compression is 3% (Min.) Galvanization: Hot dip galvanized as per IS:4759-1996. Minimum Zinc coating 610gm/m² Threads: As per IS:554-1999 both parallel & taper. Dimensions: Malleable Cast Iron Pipe Fittings as per IS:1879-2010 Part 1 to 3. Pressure: 21kg/cm² - 300Lbs/inch² (Hydraulic).

Product Image

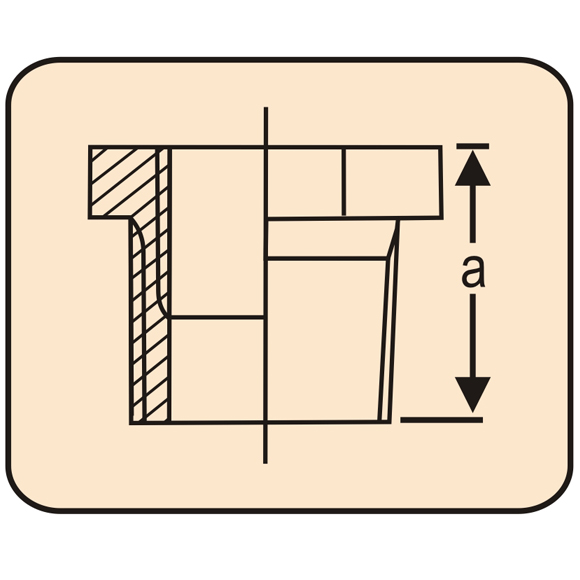

Reducing Bushing N4

Inches ¾ x ½ 1 x ½ 1 x ¾ 1¼ x ½ 1¼ x ¾ 1¼ x 1 1½ x ½ 1½ x ¾ 1½ x 1 1½ x 1¼ --
a MM
 26 29 29 31 31 31 31 31 31 31 --
Inches 2 x ½ 2 x ¾ 2 x 1 2 x 1¼ 2 x 1½ 2½ x 1½ 2½ x 2 3 x 1½ 3 x 2 4 x 2½ 4 x 3
a MM 35 35 35 35 35 40 40 44 44 51 51
Material: Black heart malleable cast iron as per IS:14329-1995 Grade BM300 Compression: Up to 2" Compression is 5% (Min.)/ 2½" to 6" Compression is 3% (Min.) Galvanization: Hot dip galvanized as per IS:4759-1996. Minimum Zinc coating 610gm/m² Threads: As per IS:554-1999 both parallel & taper. Dimensions: Malleable Cast Iron Pipe Fittings as per IS:1879-2010 Part 1 to 3. Pressure: 21kg/cm² - 300Lbs/inch² (Hydraulic).

Product Image

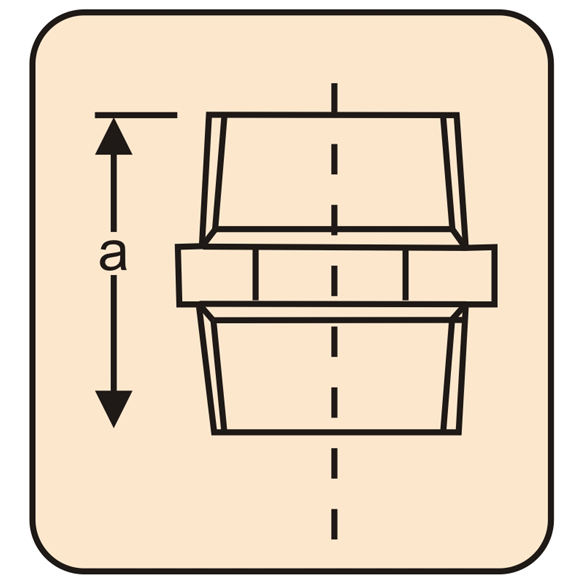

Reducing Nipple N8

Inches ¾ x ½ 1 x ½ 1 x ¾ 1¼ x ½ 1¼ x ¾ 1¼ x 1 1½ x ½ 1½ x ¾ 1½ x 1 1½ x 1¼
a MM
 47 53 53 57 57 57 59 59 59 59
Inches 2 x ½ 2 x ¾ 2 x 1 2 x 1¼ 2 x 1½ 2½ x 1½ 2½ x 2 3 x 1½ 3 x 2 --
a MM 68 68 68 68 68 75 75 83 83 --
Material: Black heart malleable cast iron as per IS:14329-1995 Grade BM300 Compression: Up to 2" Compression is 5% (Min.)/ 2½" to 6" Compression is 3% (Min.) Galvanization: Hot dip galvanized as per IS:4759-1996. Minimum Zinc coating 610gm/m² Threads: As per IS:554-1999 both parallel & taper. Dimensions: Malleable Cast Iron Pipe Fittings as per IS:1879-2010 Part 1 to 3. Pressure: 21kg/cm² - 300Lbs/inch² (Hydraulic).

Product Image

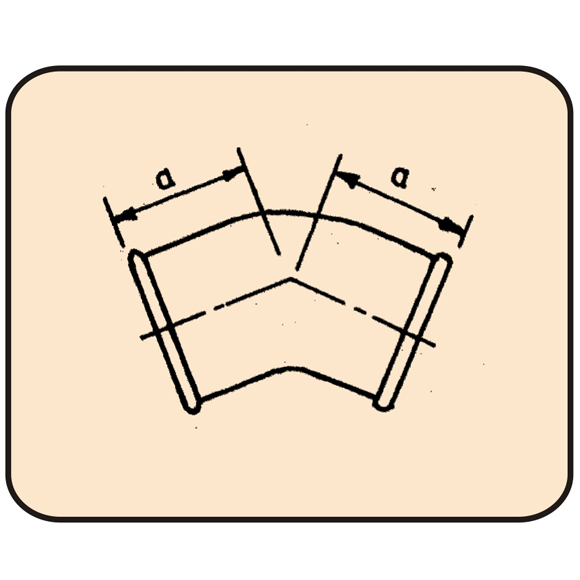

Elbow 45° (A1/45°)

Inches 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2 3 4 5 6
a MM
 22 25 28 33 36 43 52 58 66 77.5 88
Material: Black heart malleable cast iron as per IS:14329-1995 Grade BM300 Compression: Up to 2" Compression is 5% (Min.)/ 2½" to 6" Compression is 3% (Min.) Galvanization: Hot dip galvanized as per IS:4759-1996. Minimum Zinc coating 610gm/m² Threads: As per IS:554-1999 both parallel & taper. Dimensions: Malleable Cast Iron Pipe Fittings as per IS:1879-2010 Part 1 to 3. Pressure: 21kg/cm² - 300Lbs/inch² (Hydraulic).

Product Image

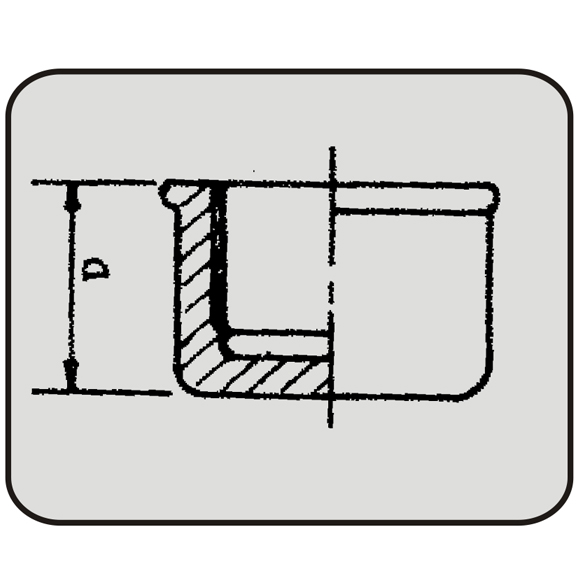

Round Cap T2

Inches 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2 3 4 5 6
MM
 15 20 25 32 40 50 65 80 100 125 150
a 19 22 24 27 27 32 35 38 45 -- 51
Material: Black heart malleable cast iron as per IS:14329-1995 Grade BM300 Compression: Up to 2" Compression is 5% (Min.)/ 2½" to 6" Compression is 3% (Min.) Galvanization: Hot dip galvanized as per IS:4759-1996. Minimum Zinc coating 610gm/m² Threads: As per IS:554-1999 both parallel & taper. Dimensions: Malleable Cast Iron Pipe Fittings as per IS:1879-2010 Part 1 to 3. Pressure: 21kg/cm² - 300Lbs/inch² (Hydraulic).

  • An ISO 9001:2015 Certified Company
+31 615860363

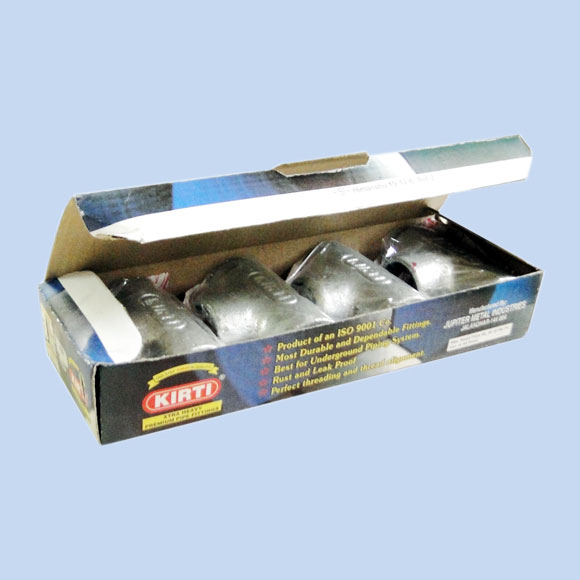

Non ISI Extra Heavy Pipe Fittings (Box Packing)

Product Image
Product Image
Product Image
Product Image
Product Image
Product Image
Product Image
Product Image
Product Image
Product Image
Product Image
Product Image

Specifications

  • Material: Black heart malleable cast iron as per IS: 14329:1995 Grade BM-300.
  • Threads: Threads of KIRTI Pipe Fittings both taper and parallel threads as per IS: 554-1985 and ISO 7/1-1982.
  • Galvanizing: KIRTI Pipe fittings are galvanized as per IS: 4759:1996.
  • Compression Test: This test conduct to judge the malleability of pipe fittings as per IS: 1879:1987.
  • Pressure Test: Hydraulic Pressure: 2.1 Mpa or 300lb/in2. Air pressure: 1.05 Mpa or 150 lb/in2.


Mechanical Tests

  • Malleability Test: To ensure that the KIRTI pipe fittings are properly malleabilised, we perform the malleability test.
  • Tensile Test: To ensure that the KIRTI pipe fittings are properly annealed and have attained the required tensile strength & elongation, we perform the tensile test.
  • Pressure Test: To ensure that KIRTI pipe fittings do not leak when installed to a pipe line system, we perform the pressure test.
