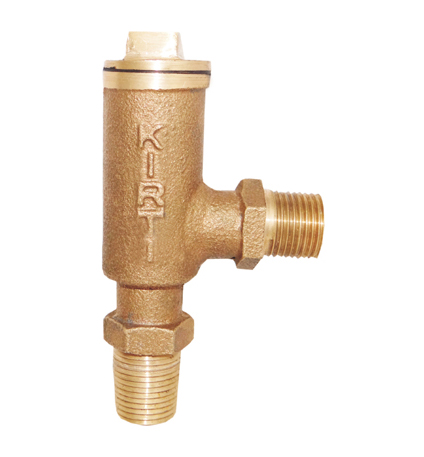

Gun Metal Ferrules IS:2692
Size 15mm to 50mm
Materials

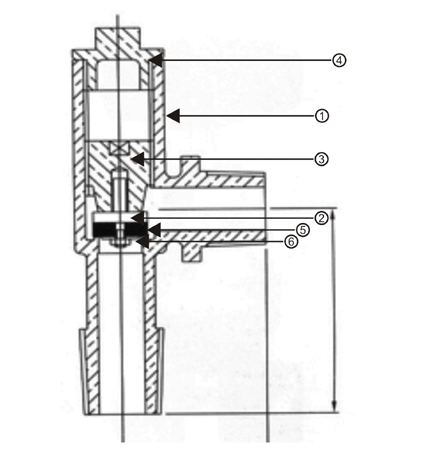

| Part No. |
Name of Part |
Material |
Specification |
1
|
Body & Bonnet |
Gun Metal |
IS:318 Ltb2 |
| 2 |
Disc & Disc Nut |
Brass |
IS:1264 DCB2 |
| 3 |
Plug |
Gun Metal |
IS:318 Ltb2 |
| 4 |
Joint Washer |
Leather |
- |
| 5 |
Rubber Washer |
Rubber |
IS:4346 |
| 6 |
Copper Washer |
Copper |
IS:3487 |
Specifications
- Gun Metal Ferrules ISI Marked to IS:2692
- Inlet to BSPT & Outlet to BSP
- Confirming to IS:2692/1989
- Hydraulic Test Pressure: Body & Seat: 1.5Mpa
- Suitable for Water
Features
- Strictly confirming to IS:2692
- Excellent in performance
- Heavy Duty Full Flow
- Can withstand heavy impact of water
- Tolerance of high sudden pressure
